Automatic Mitre Circular Saw PSU 450 A

Highest system throughput for industry and steel trade

The flexible, PC-controlled high-performance mitre saw PSU 450 A combines economical cuts and high plant output with outstanding operating convenience. Its high level of automation and its flexibility cover a wide application spectrum. The mitre circular saw is capable of processing profiles and pipes as well as solid material of different dimensions in fully automatic operation.

Servo-motorised axes for material positioning, mitre angle adjustment and the optional disposal gripper ensure maximum system throughput. The discharge device grips the part to be sawn, and once the cut is complete deposits it out of the machine area in a freely programmable position.

Thanks to its modular design, the mitre circular saw PSU 450 A can be combined with infeed magazines or disposal equipment to suit the application.

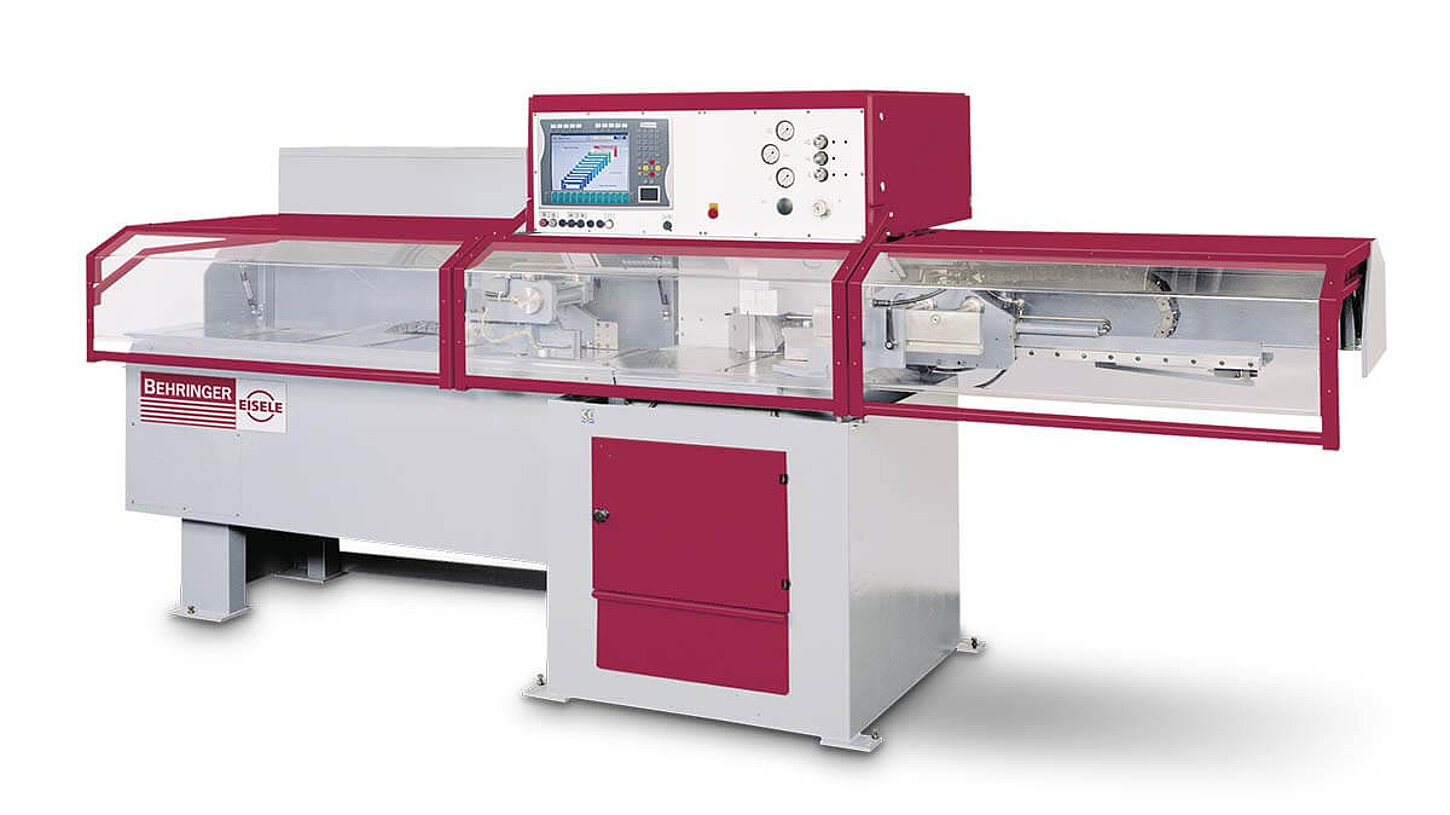

  • Automatic mitre circular saw PSU 450 A

    Automatic mitre circular saw PSU 450 A

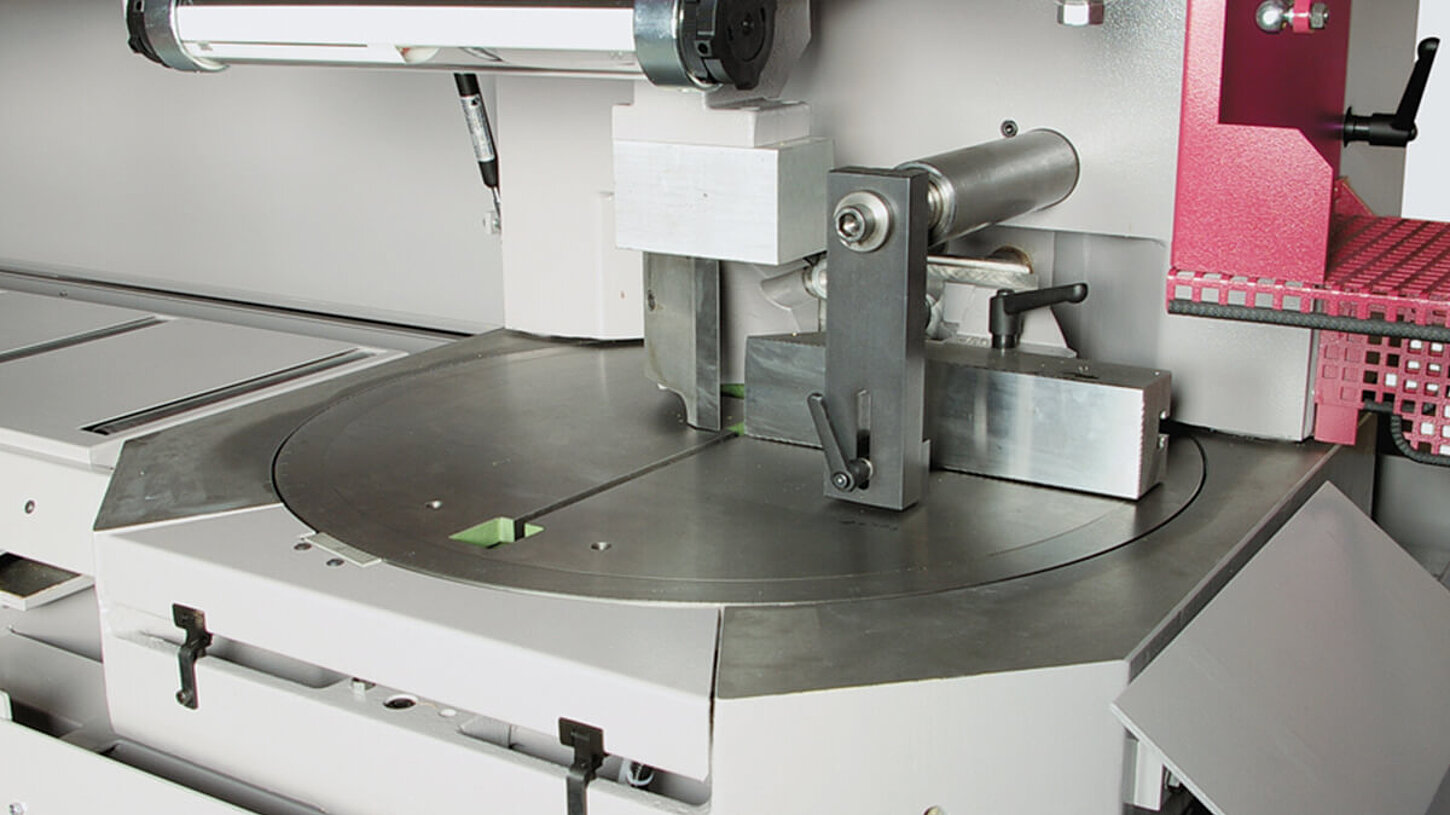

  • Automatic mitre circular saw PSU 450 A material table with mitre adjustment

    Automatic mitre adjustment 30° to 150°

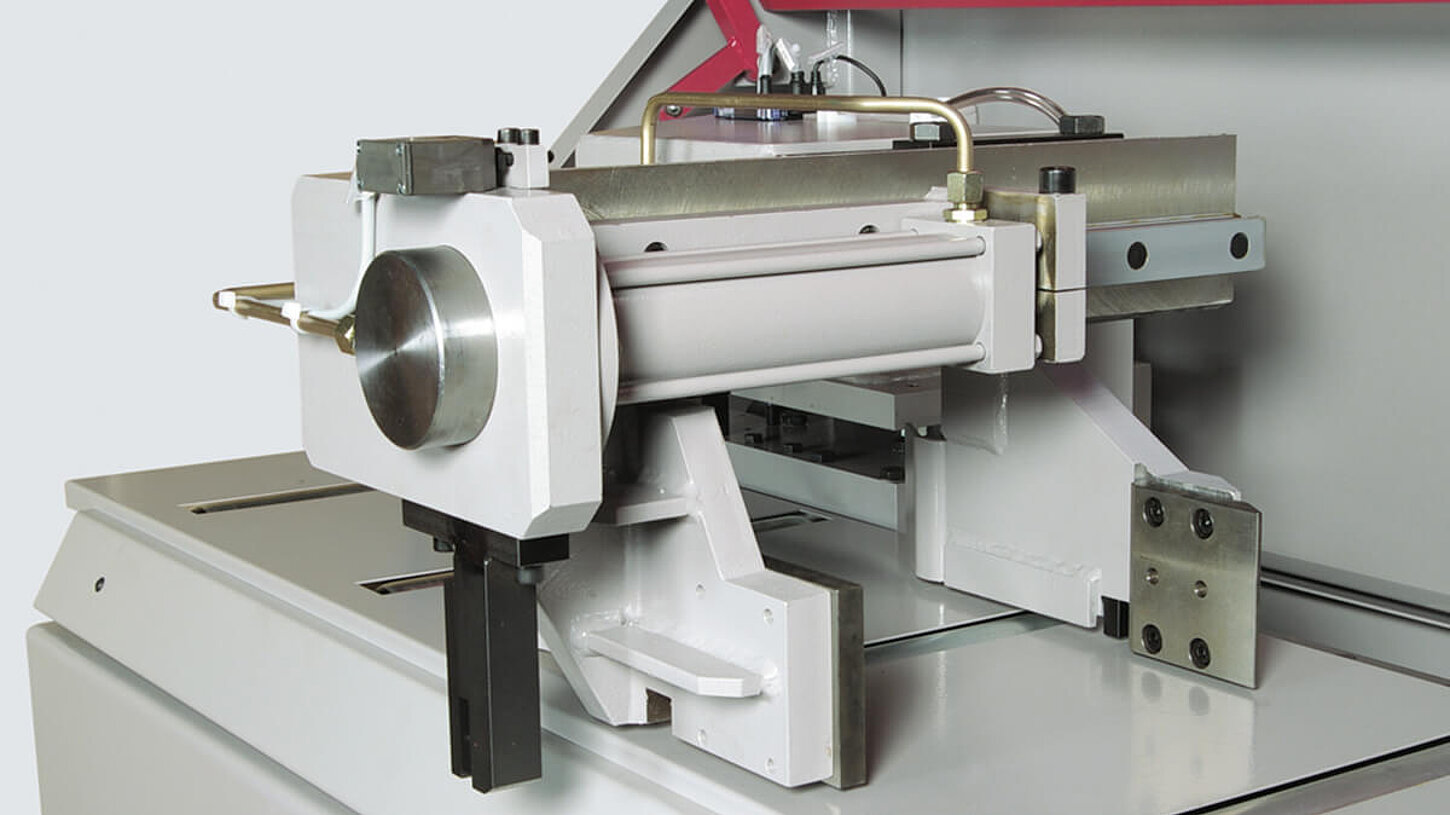

  • Automatic mitre circular saw PSU 450 A feeding gripper

    Servo-driven feeding gripper

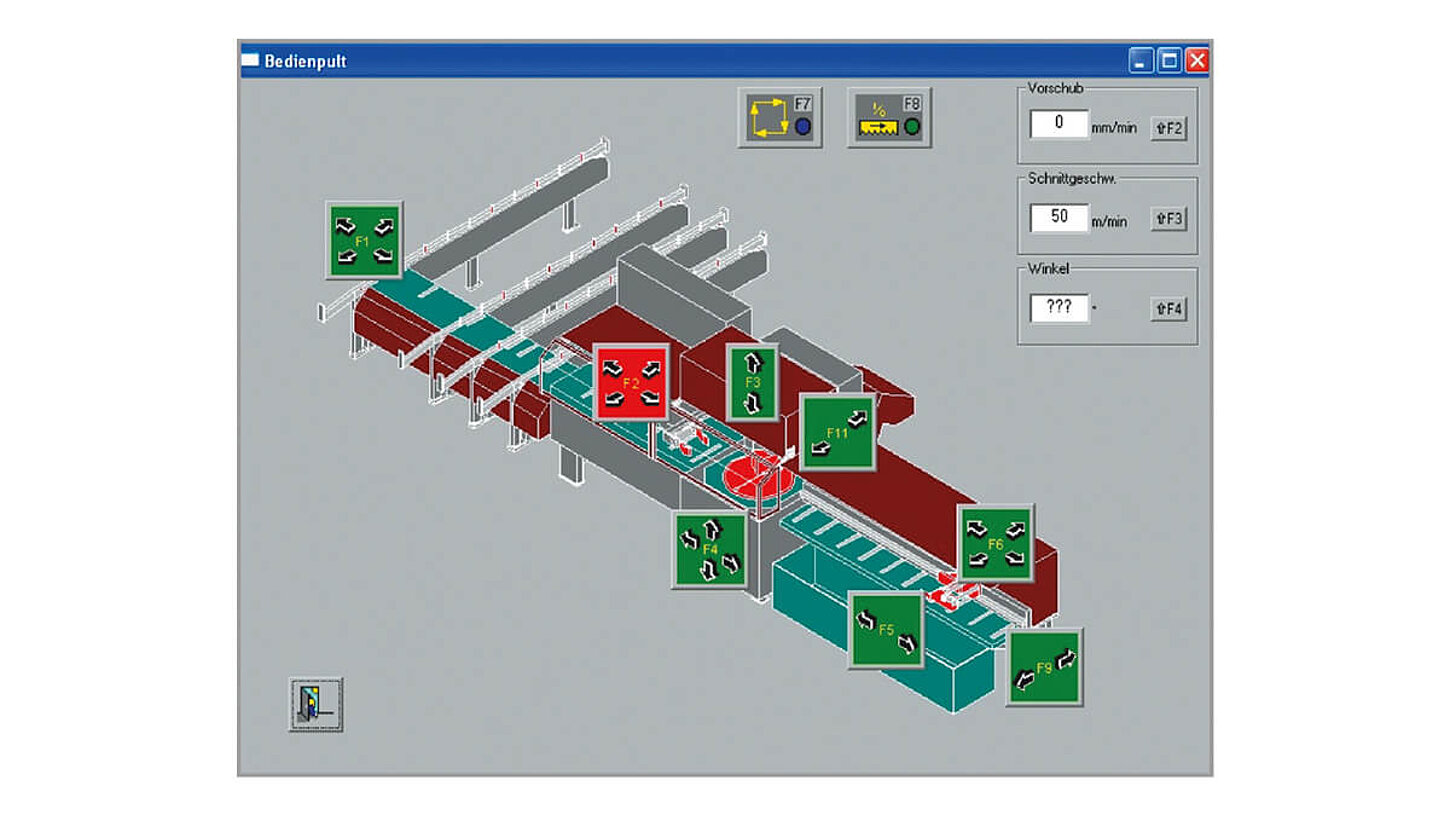

  • Automatic mitre circular saw PSU 450 A powerful PC control with NESTING functionality

    Powerful PC control

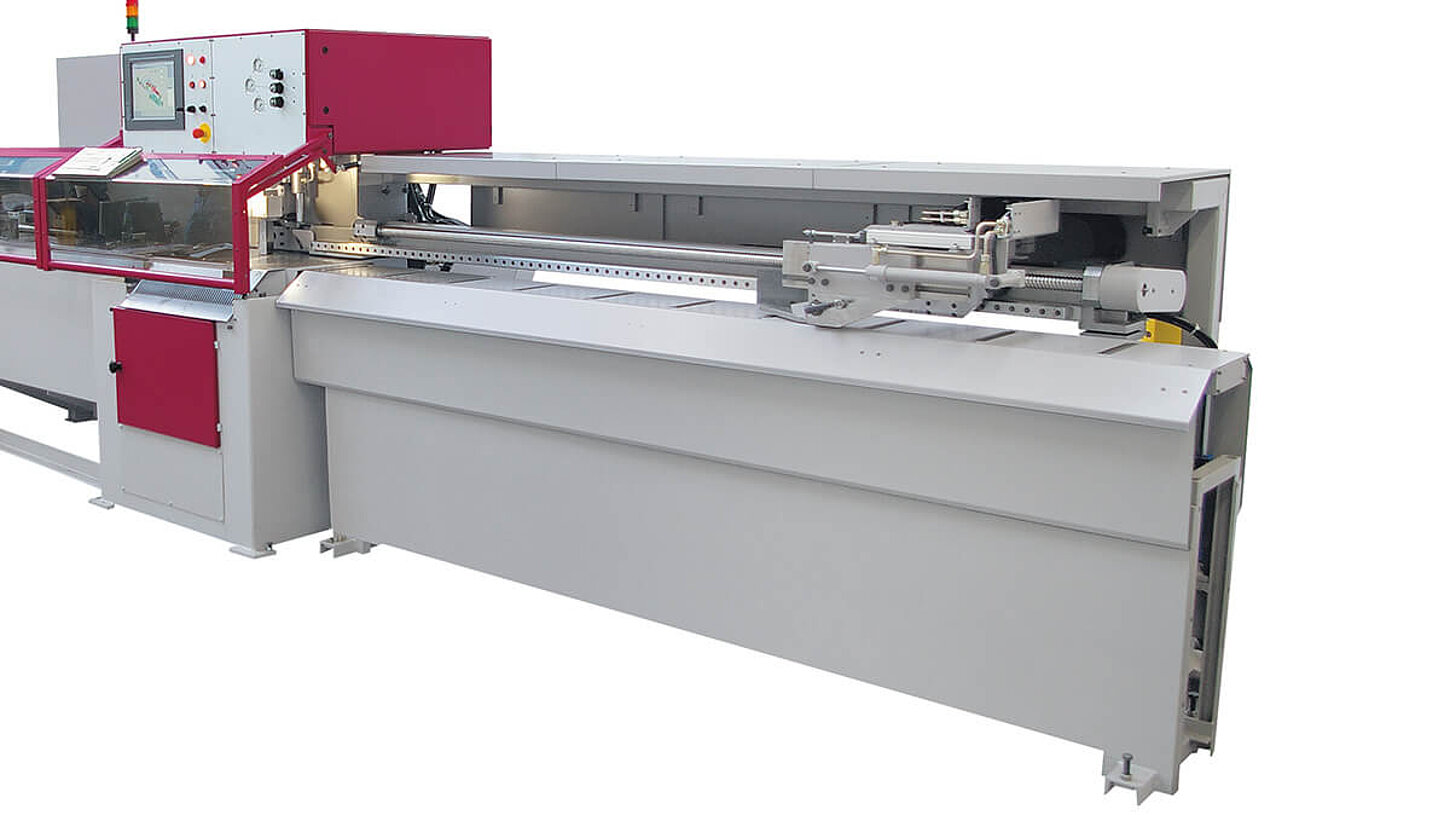

  • Automatic mitre circular saw PSU 450 A cut-off gripper

    Highest level of automation with cut-off gripper

Features of the mitre circular saw PSU 450 A

  • Highest level of automation
    By connecting the infeed and cut-off gripper, the mitre circular saw is fully automated. This also includes the disposal of trim cuts, remnants and gussets resulting from mitre cuts in automatic operation.

  • Servo axes
    for precise and fast length positioning of the starting material and mitre angle adjustment.

  • Extensive range of materials
    The mitre circular saws of the PSU series cover an extensive range of materials such as flat, angular and solid material, pipes and special profiles. They are therefore ideally suited for use in industry and workshops.

  • Sturdy machine base
    The heavy machine stand and the vibration-damping cast iron components made by Behringer ensure a low-vibration sawing process and thus an increase in tool life.

  • Optimum chip flow
    also when sawing tubes and hollow profiles due to the saw feed from bottom up.

  • Reduced material consumption
    Alternating sawing eliminates the need for gussets on sections with the same angle. This saves material and increases productivity.

  • Robust and durable
    The heart of the PSU saw units is a worm gear unit with Eisele shock-absorbing feature, produced in-house. The robust design of the gearbox consistently dampens vibrations. This ensures a good cutting surface, long saw blade life and a long service life of the saw.

  • Simple, intuitive control
    Everything in view. Everything under control. The control system is self-explanatory, simple, avoids operating errors and allows quick navigation in the various programmes.

  • Short cycle times
    by electronic cutting height adjustment and rapid return of the saw blade.

  • High cutting quality
    Workpiece clamping on both sides of the saw blade ensures a clean cutting surface and low tolerances.

  • Micro spray system
    When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via a nozzle. This guarantees a long tool life and a clean working environment.

  • Modern interfaces
    The connection of the sawing system to process control systems can be realised via standardised interfaces such as ASCII, DSTV or OPC-UA.



Efficient Material Handling for automatic mitre circular saws

With Behringer Eisele's material handling solutions, you achieve high plant throughput in low-operator mode.

Learn More

Individual Configuration

The mitre circular saw PSU 450 A can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data mitre circular saw PSU 450 A

Flat 90° 240 x 70 mm
Flat 45° 170 x 50 mm
Flat 30° 130 x 30 mm

Square 90° 140 x 140 mm
Square 45° 125 x 125 mm
Square 30° 100 x 100 mm

Round 90° 150 mm
Round 45° 145 mm
Round 30° 112 mm

Smallest dimension to be sawn round 10 mm
Smallest dimension to be sawn flat 10 x 10 mm
Drive power 7,1 kW
RPM 1 - 70 min-1
Saw blade diameter 450 mm
Feeding length single stroke 1.500 mm
Feed rate 667 mm/s
Saw feed hydraulic
Material clamping hydraulic
Length 5.800 mm
Width 1.600 mm
Height 2.300 mm
Weight 3.150 kg
Material support height 1.045 mm
