HDV - Compact machining centre for profiles

The all-in-one tool to boost your workshop efficiency

The Vernet Behringer HDV lines are specially designed for drilling, milling and marking rectangular tubes and profiles from 40 x 40 to 1,000 x 450 mm section, on 3 or even 4 sides. They can be combined with a band saw and/or a shearing unit. These lines offer a unique versatility on the market.

  • HDV Compact machining centre for steel profiles

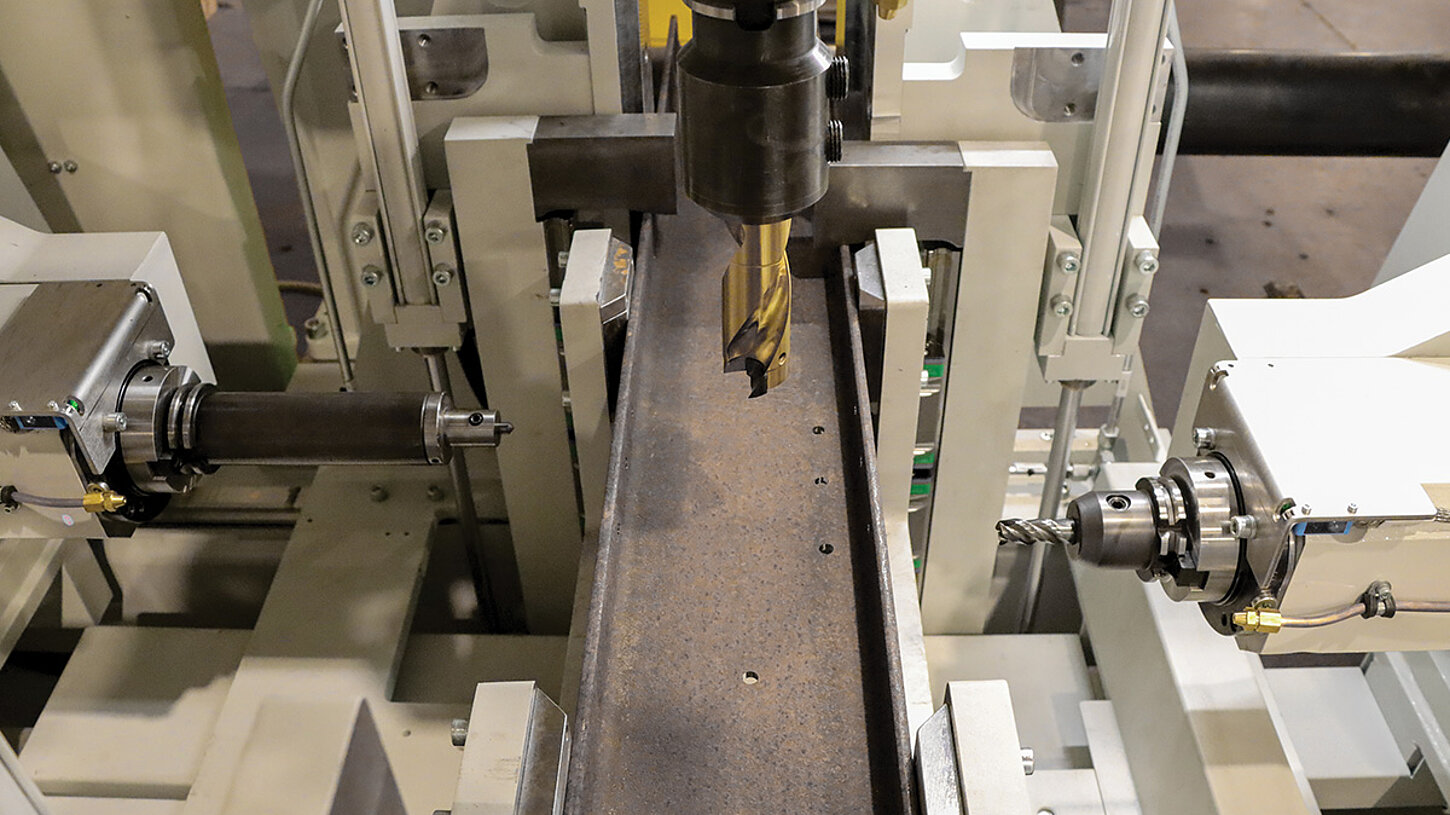

  • 3 spindles with 200 mm stroke in x-axis

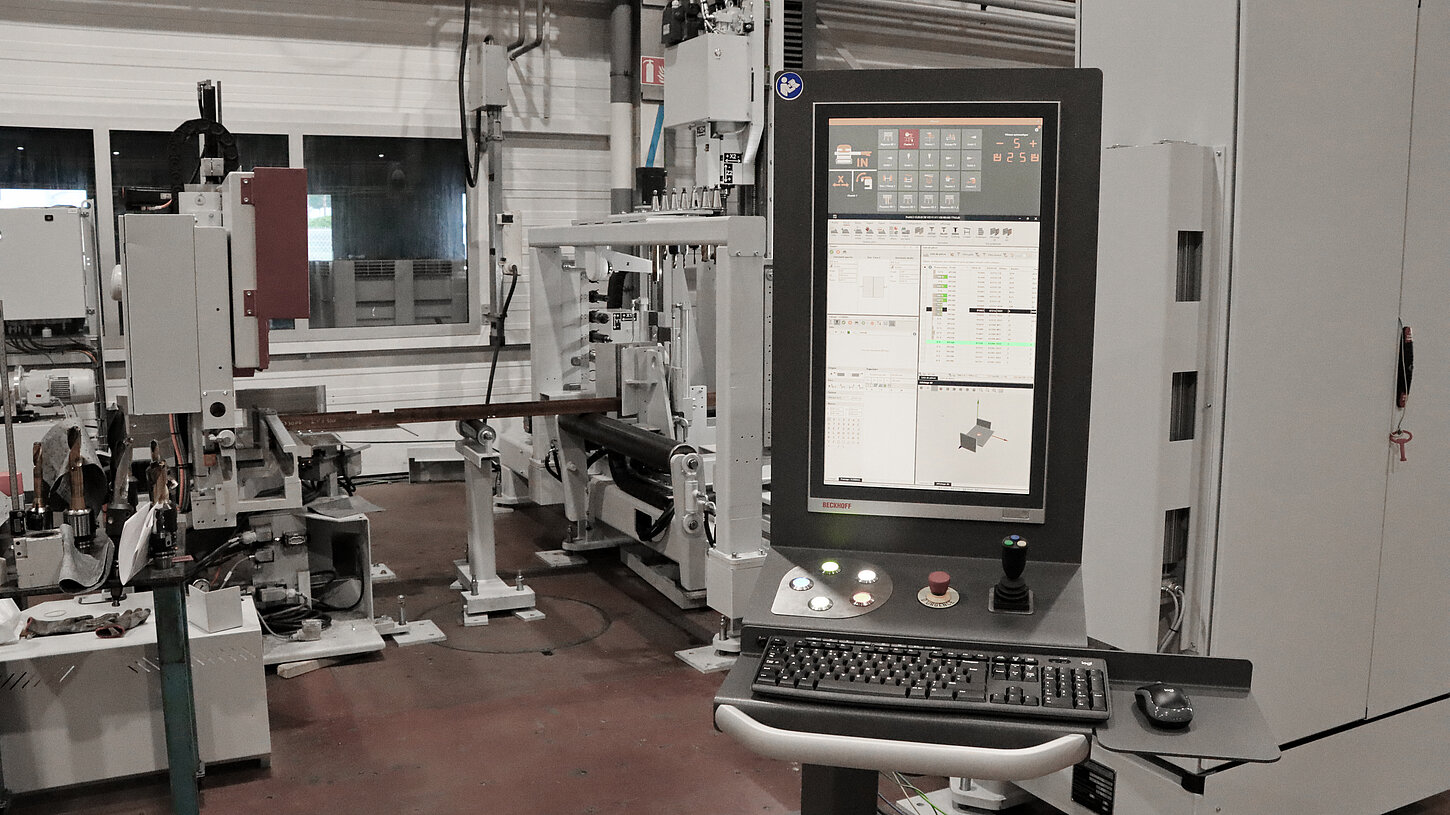

  • Complete and intuitive software suite with large 24-inch screen

  • HDV video

Features of the drilling line HDV

Milling

Marking

Drilling

Scribing

Sawing

Shearing

  • Maximise the use of your machine
    suitable for processing small angles (especially when using the optional shears), square tubes from 40x40 mm and H-profiles up to 700 mm width and more! Possibility of processing steel profile systems for doors and windows.

  • Manuelle Arbeiten vermeiden
    durch integrierte Bearbeitungsmöglichkeiten wie beispielsweise Fräsen von Langlöchern und Freiformen, Schlitzen von Rohren oder Ausklinken von Flanschen. Das CNC-gesteuerte Spannsystem mit 150 mm Hub ermöglicht ein optimales Klemmen der Werkstücke während der Bearbeitung und garantiert eine optimale Werkzeugstandzeit und Bearbeitungsleistung.

  • Lowest wear
    The robust design of the machine minimises vibrations and ensures the longest possible tool life and optimum durability of the machine elements. The service life of the machine is significantly increased.

  • Avoid manual tasks
    with the milling of slotted holes and free shapes, processing of slots in tubes, flanges notching etc. The CNC controlled clamping system with 150 mm stroke allows optimal clamping of workpieces during machining, guaranteeing optimum tool life and performance.

  • Monitor your production
    User-friendly and powerful software suite allowing the optimization of your bar stock, the import and easy programming of your parts, the addition of information on your parts such as coding and slinging indications, manage and optimize your scrap stock. Make your machine communicate with your ERP.

  • Identify your parts and indicate assembly positions
    with the exclusive V-scoring system. It is extremely fast, silent and low in operating costs. The markings are still clearly visible after painting or galvanising.

  • The most energy-efficient machine in its range
    The HDV uses an average of 50% less installed power than competing products, while delivering equivalent or even superior performance

Machining examples

Individual Configuration

The HDV can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical Data HDV

Capacity1,000 x 450 mm
Materials to be processed
Raw material lengthMax 24 m
Max linear load500 kg/m
Feeding systemCNC high speed carriage with hydraulic gripper
Spindles3 spindles with 200 mm stroke in X-axis
V-scoring fast scribing Option:
MillingStandard
ThreadingStandard
Tool changer6 + 6 + 8 Ø
Spindle power (S6-60 %)11 kW
Spindle speed160 – 4,000 rpm
Control systemPRONC3 user-friendly programming software with 3D part display
