HDX - Machining center for steel profiles

Save time and manpower while increasing quality

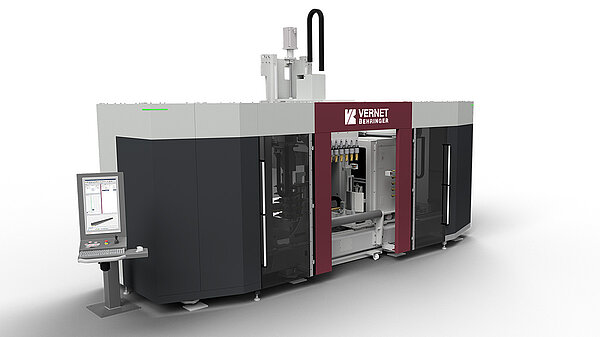

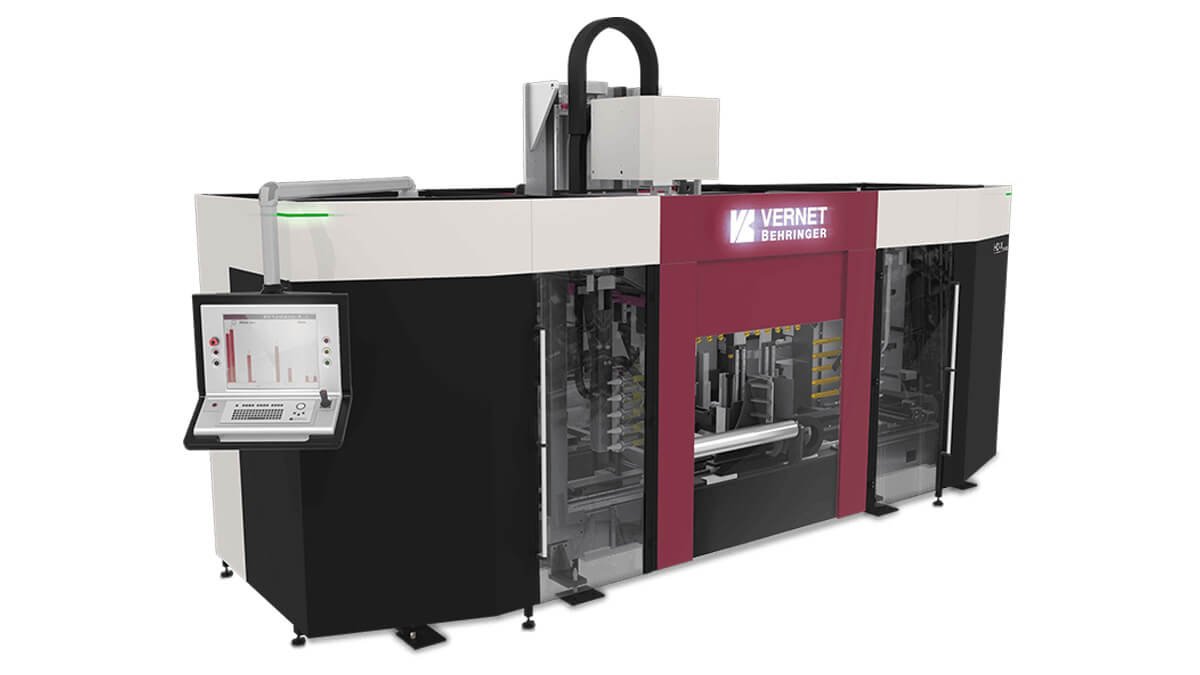

The HDX machining centre from Vernet Behringer is the fastest drilling, milling and marking machine on the market. Thanks to its 3 independent machining spindles, H, U and angle profiles as well as flat steel and rectangular tubes can be machined on 3 sides simultaneously. It is even possible to add one more milling spindle to process sections on 4 sides.

The HDX profile machining centers can be combined with bandsaws and/or shearing units. These universal lines offer great flexibility combined with very high productivity.

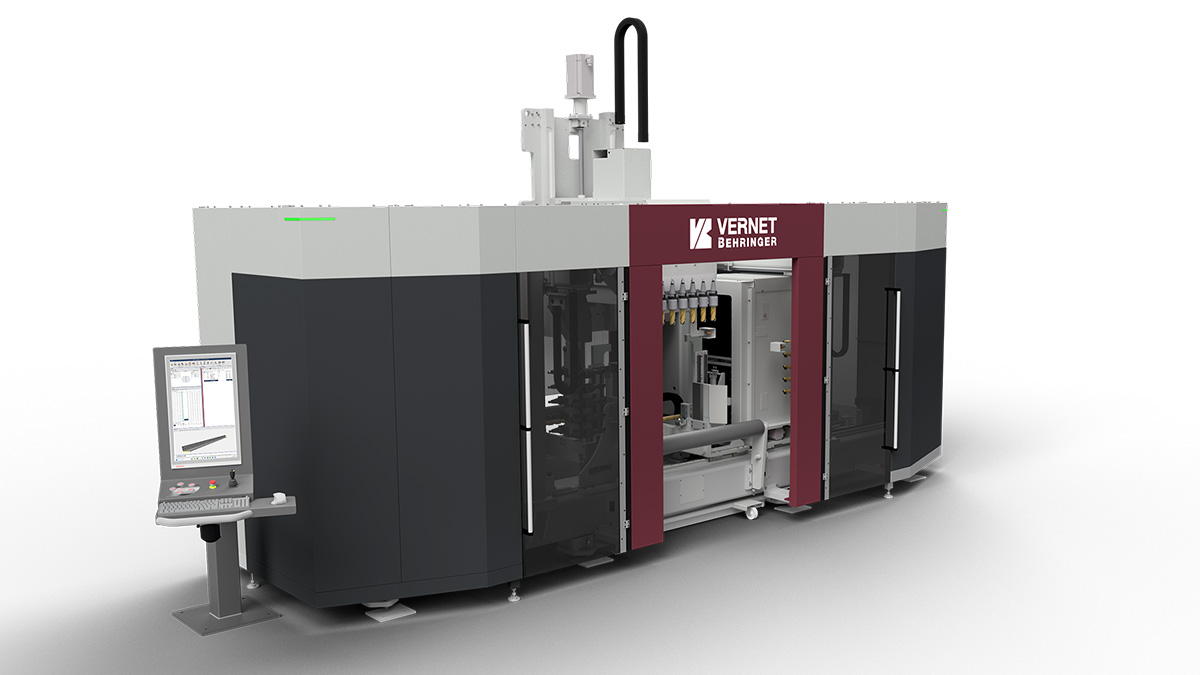

High speed beam drilling and milling line HDX
V-scoring for part identification & layout marking
Wide milling possibilities
Product Video HDX
Various machining possibilities
Optional shearing unit for H-beams, channels, angles and flats

Features of the drilling line HDX

Milling

Marking

Drilling

Scribing

Sawing

Reduce your power consumption
Energy-saving design with high efficiency spindle motors & servo-driven hydraulic unit

Increase your production capacity
Up to 60% faster than a traditional drilling machine thanks to the additional X-stroke of 500 mm on the 3 drilling units: thus, simultaneous drilling is possible on the flanges and in the web at different positions, as well as machining in hidden time during sawing (according to part drawings). Spindle speed up to 4000 rpm combined with high torque for high performance carbide drilling up to 50 mm diameter.

Increase your working time: total automation is possible
Allowing you to work without an operator, especially at night: program your cycles the day before and find your machined profiles the next morning. Monitor your production remotely thanks to the camera kits and production feedback via e-mail.

Avoid manual tasks

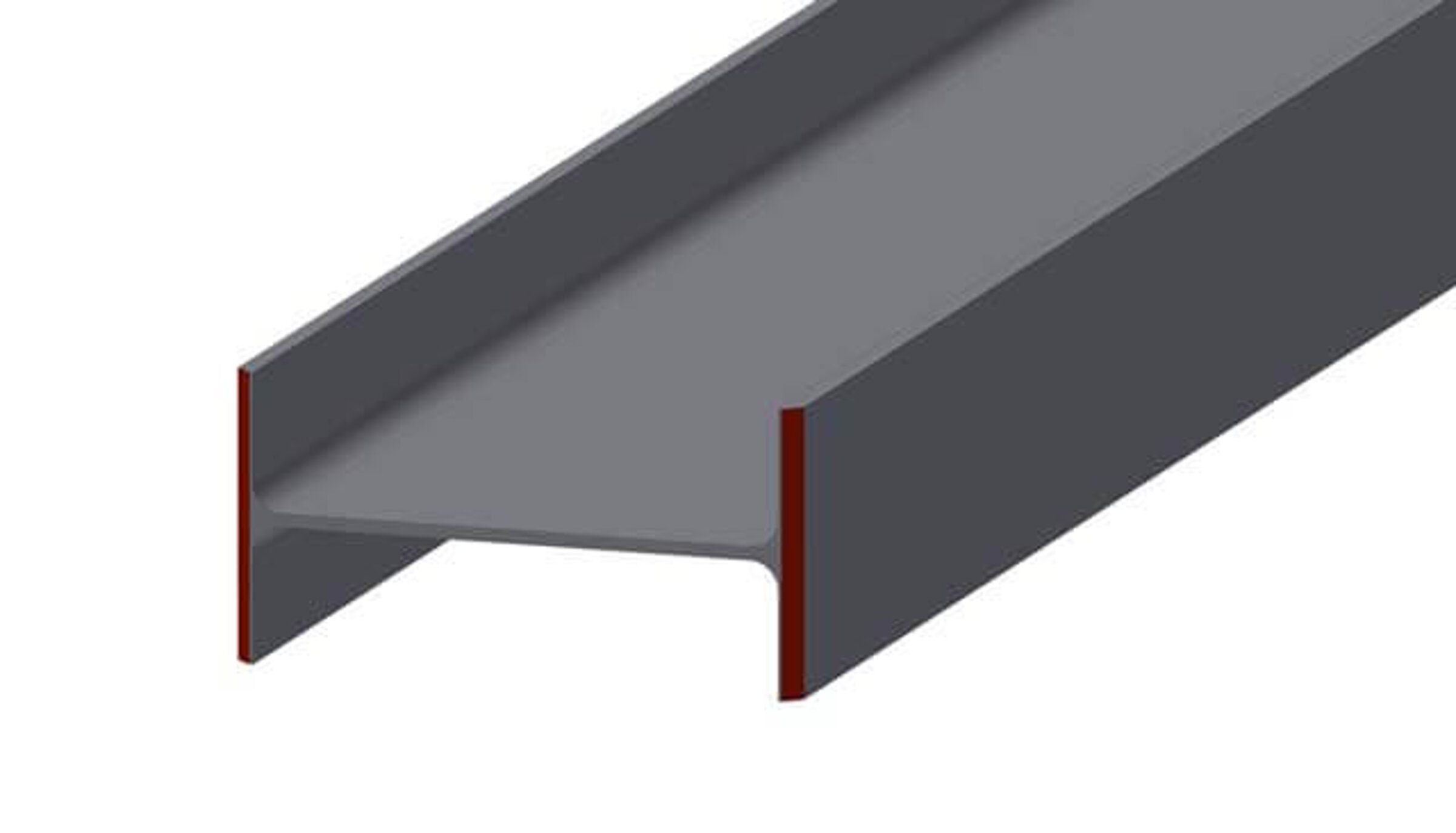

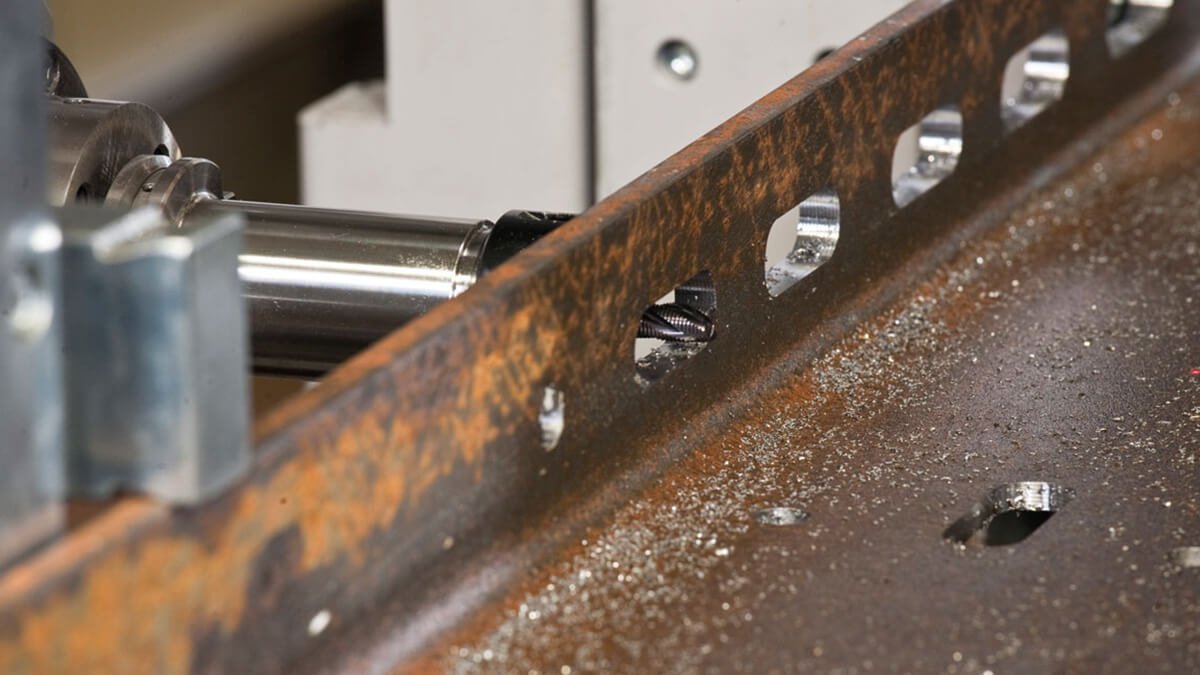

By milling oblong holes and free forms, notching, chamfers for high speed welding preparation.

Monitor your production
User-friendly and powerful software suite allowing the optimization of your bar stock, the import and easy programming of your parts, the addition of information on your parts such as coding and slinging indications, manage and optimize your scrap stock. Make your machine communicate with your ERP.

Identify your parts and indicate assembly positions

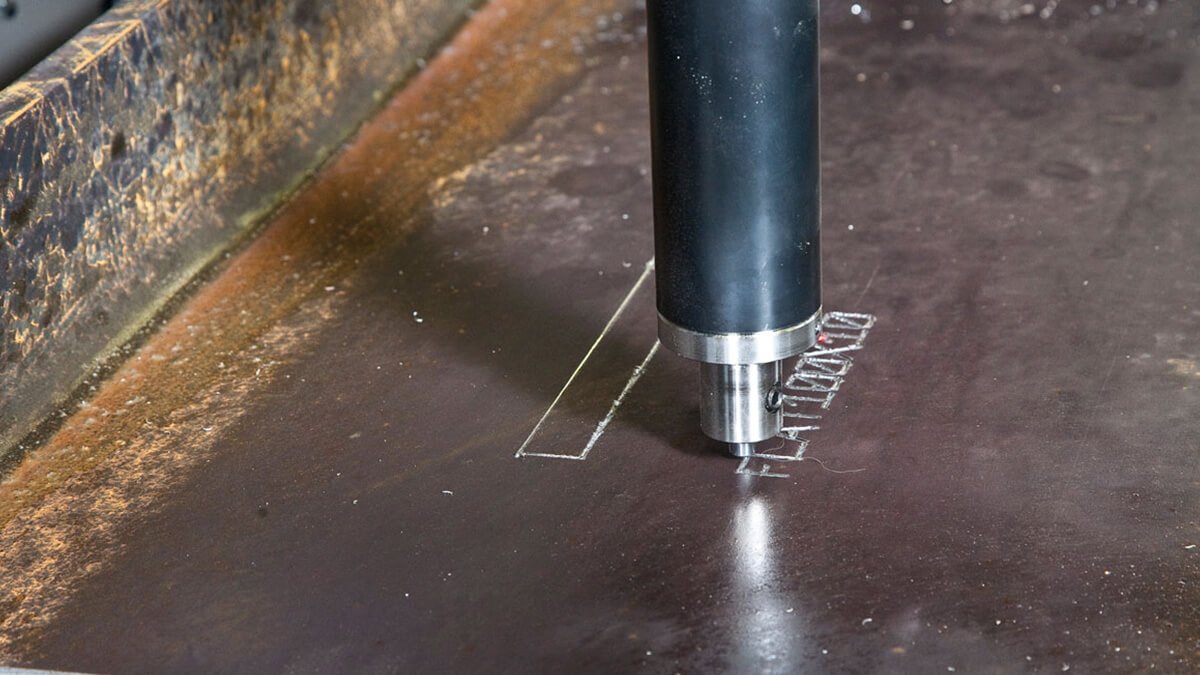

with the exclusive V-scoring system. It is extremely fast, silent and low in operating costs. The markings are still clearly visible after painting or galvanising.

Lowest wear
The robust design of the machine minimises vibrations and ensures the longest possible tool life and optimum durability of the machine elements. The service life of the machine is significantly increased.

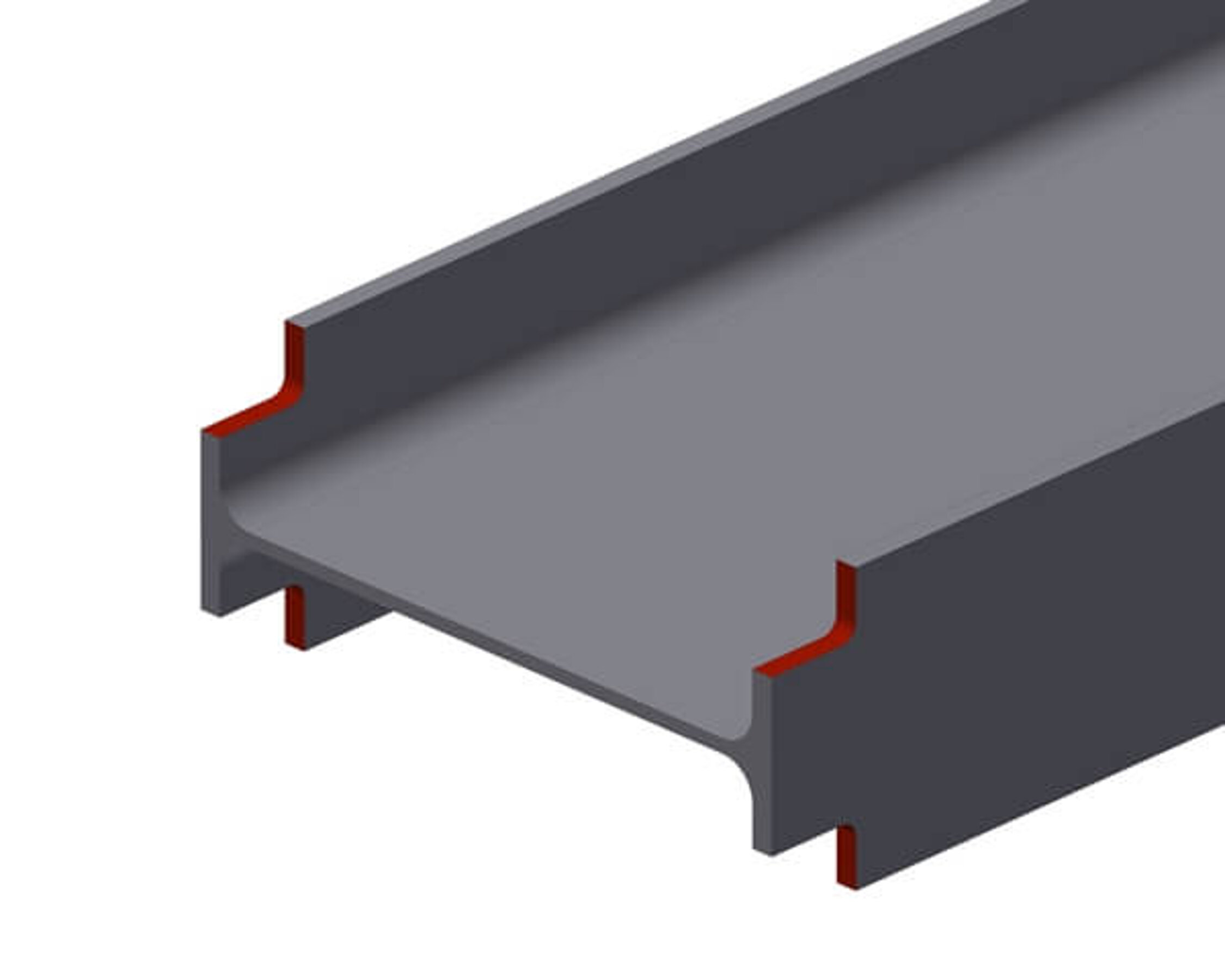

Examples of milling shapes

Individual Configuration

The HDX can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical Data Drilling Line HDX

Capacity	1,250 x 600 mm
Materials to be processed	Option:
Raw material length	30 m
Max linear load	500 kg/m

Feeding system	CNC high speed carriage with hydraulic gripper
Spindles	3 spindles with 500 mm stroke in X-axis
V-scoring fast scribing	Option:
Milling	Standard
Threading	Standard
Spindle power (S6-60 %)	16 kW
Spindle speed	160 – 4,000 rpm
Max. drilling diameter	50 mm Ø
Tool changers	10 / 12 / 10 positions
Control system	PRONC2^3D user-friendly programming software with 3D part display
