Horizontal bandsaw HBE411A Dynamic

The automatic bandsaw offers powerful, accurate cuts with low costs per cut

The automatic band saw HBE411A Dynamic from BEHRINGER is designed for economical use in industry and the steel trade. It offers high-performance saw cuts with simultaneously low cutting deviations in easy to difficult-to-machine metals and plastics. In doing so, the band saw covers a wide range of materials from profiles and tubes to solid material. Thanks to its wide-opening full enclosure, the automatic band saw HBE411A Dynamic offers uncompromising work protection combined with good accessibility. Its low energy consumption contributes to resource-saving production.

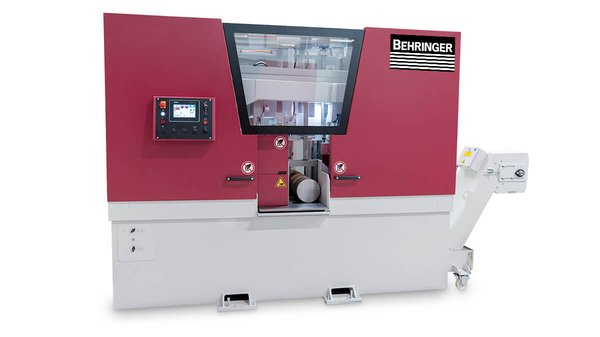

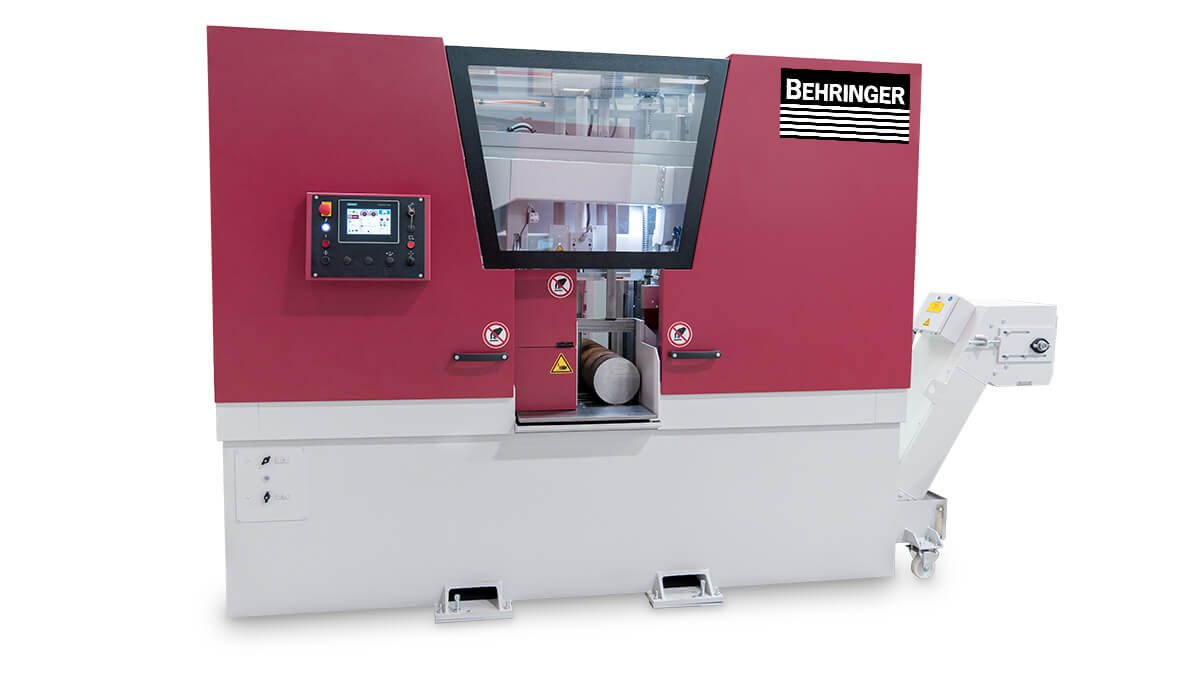

  • Behringer automatic band saw HBE411A Dynamic

    Horizontal bandsaw HBE411A Dynamic

  • Behringer horizontal bandsaw HBE411A Dynamic bundle clamping device

    Servo-downfeed with cutting pressure control

  • Behringer machine control BehrCtrl10

    Intuitive BehrCtrl10 touch control

  • Youtube Logo

    Product video automatic band saw HBE411A Dynamic

  • Behringer band saw HBE411A Dynamic saw frame made of vibration damping gray cast iron

    Stable cast iron saw frame

  • Behringer horizontal bandsaw HBE411A Dynamic electrically driven chip brush

    Electrically driven chip brush

  • Behringer horizontal bandsaw HBE411A Dynamic bundle clamps

    Bundle clamping device (option)

Features of the horizontal bandsaw HBE411A Dynamic

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

  • Auto-Feed-Control
    Selection of the material in an extensive material database. The AFC automatically calculates the optimal values for saw feed and cutting speed.

  • Energy efficient
    The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.

  • Precision portal-design guide system
    The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

  • Electrically driven chip brush
    with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

  • Servo downfeed system
    The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds. Your advantage: higher cutting performance and longer band life!

  • Automatic guide arm
    Optimum sawing result without any adjustments - even with frequently changing material sizes.

  • Easy to use
    Quick and easy operation of all functions of the automatic band saw via touch control.

  • Double clamping vice
    offers process reliability - especially when sawing bundles or making single cuts. The clamping jaws of the band saw are arranged on the infeed and outfeed side and clamp both the starting material and the finished cut.

Individual Configuration

The horizontal bandsaw HBE411A Dynamic can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Productivity boost for your production

Faster cuts with the new AFC Pro



  • Countering the shortage of skilled labour
    Optimum sawing results WITHOUT prior knowledge of the operator.

  • Increase your output
    Significantly increased cutting performance thanks to dynamic sawing process (up to 50% depending on material).

  • Wide range of materials - no problem
    The extensive material database even takes tempering or electro-slag remelting (ESR) into account.

  • Scalable production
    The sawing know-how is in the machine control system. This allows you to easily adapt your production to changing requirements.

We would be happy to show you how you can make your production even more efficient with our sawing solutions.

Get in touch with us!

Technical data horizontal bandsaw HBE411A Dynamic

Cutting range 90° round 410 mm
Cutting range 90° flat 510 x 410 mm
Smallest dimension to be sawn round 10 mm
Smallest dimension to be sawn flat 10 x 8 mm
Feeding length single stroke 650 mm
Drive power 3.8 kW
Blade speed 15 - 110 m/min
Saw blade dimensions 5,730 x 41 x 1.3 mm
Rest piece length in automatic operation 80 mm
Total power 5 kW
Saw feed servo-feed via ball screw
Material feed ball screw
Material clamping hydraulic
Saw blade cleaning electrically driven chip brush
Length 2,000 mm
Width 2,850 mm
Height 2,220 mm
Weight 3,200 kg
Material support height 800 mm
