Automatic plate saw VPS60-220A
Highest efficiency in cross-cutting plates and blocks
The automatic plate saw VPS60-220A is BEHRINGER's solution when it comes to fully automatic cross-cutting of large plates and blocks. The vertical arrangement of the saw band has clear advantages over the horizontal design, as the engagement length of the saw band is significantly shorter. As a result, the cross cutting plate saw offers significantly higher cutting capacities while at the same time reducing tool costs.
Thanks to their robust basic design and high-performance components, the automatic plate saws of the VPS series are designed for demanding applications in the steel trade, industry and metal production. From non-ferrous metals and aluminum to simple work steels and difficult-to-cut materials such as Inconel or titanium. Their modular design allows the cross cutting plate saw to be individually adapted to the customer's application.

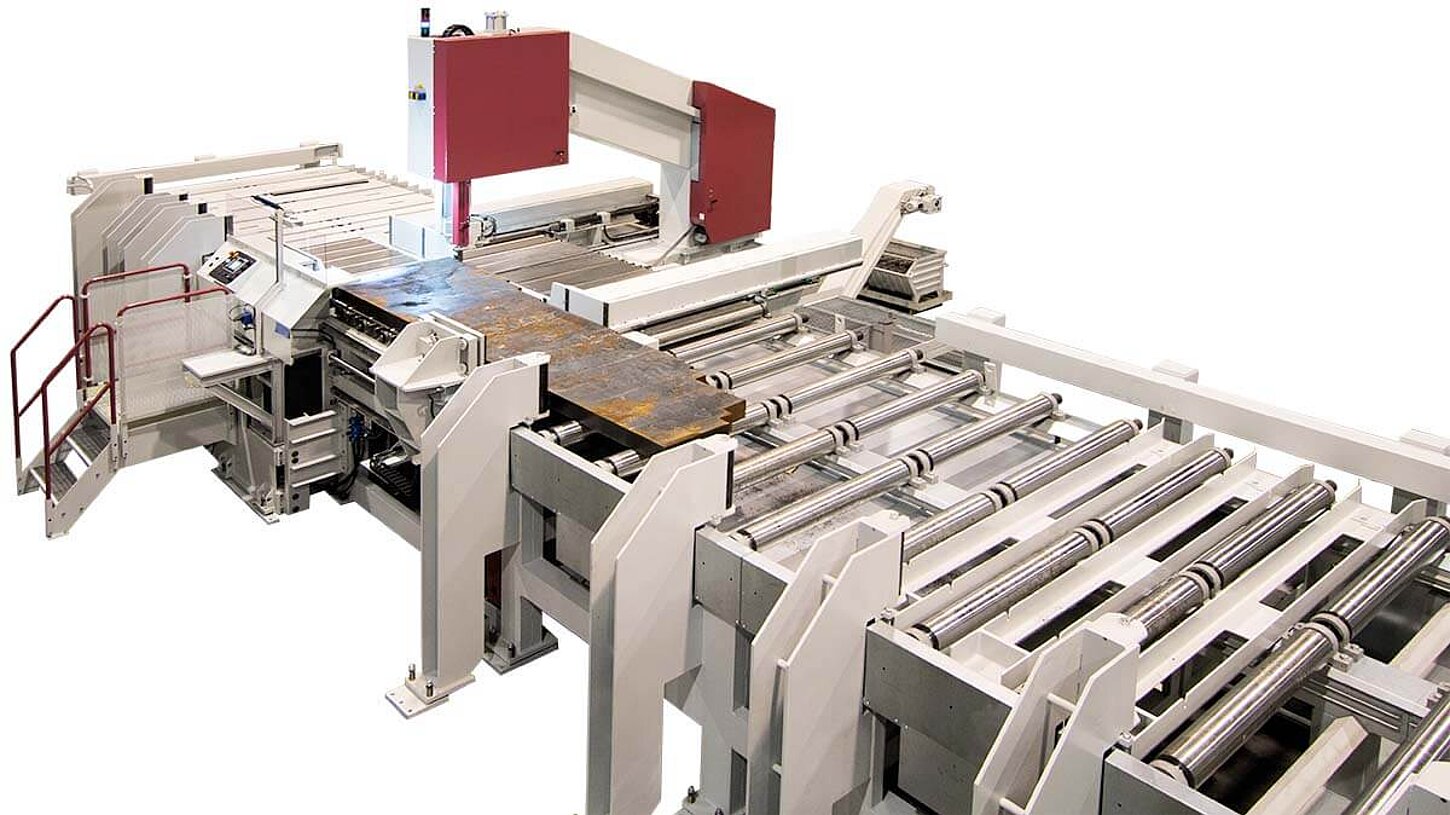

Automatic plate saw VPS60-220A

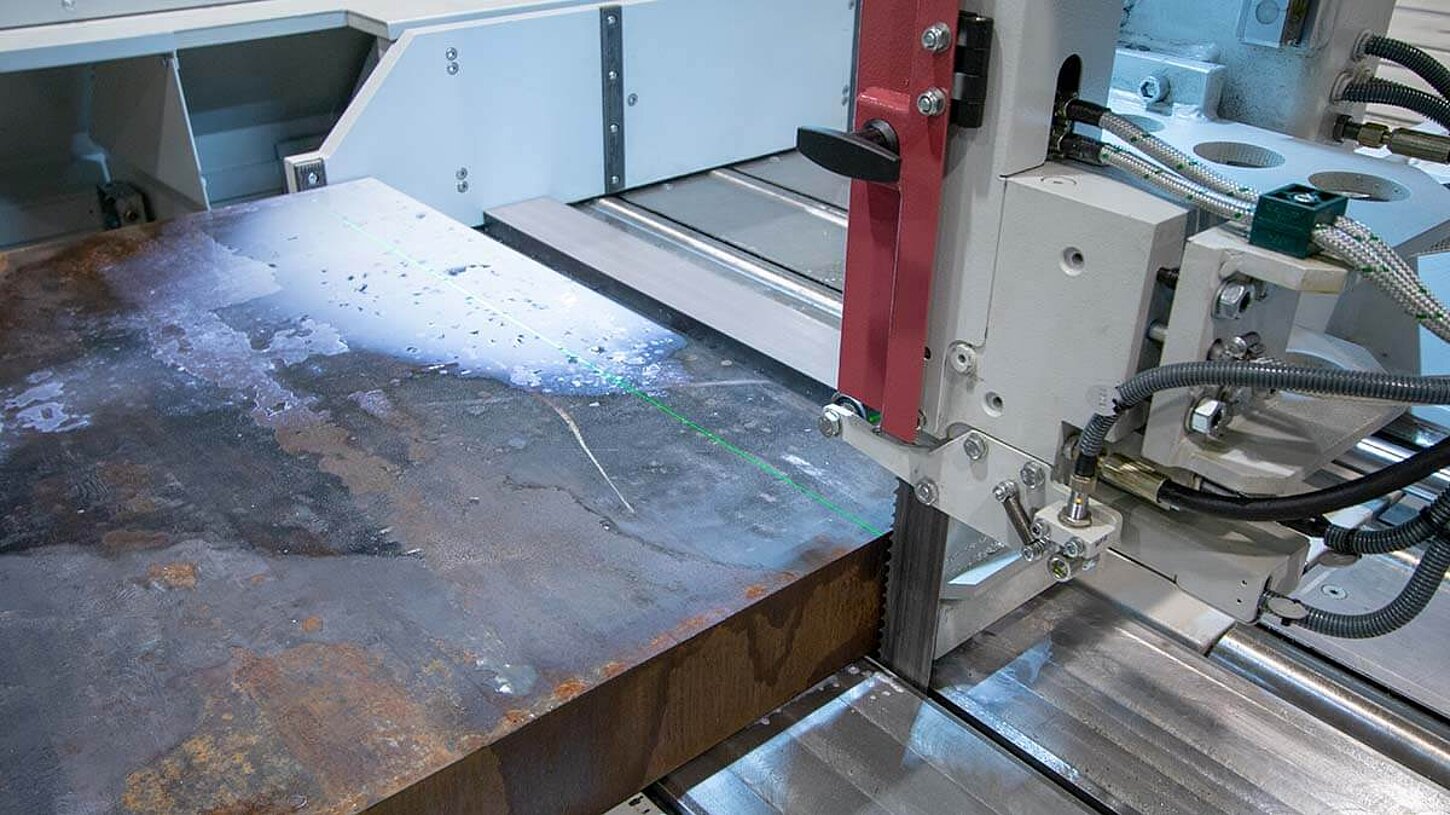

High-performance band guide with servo feed system

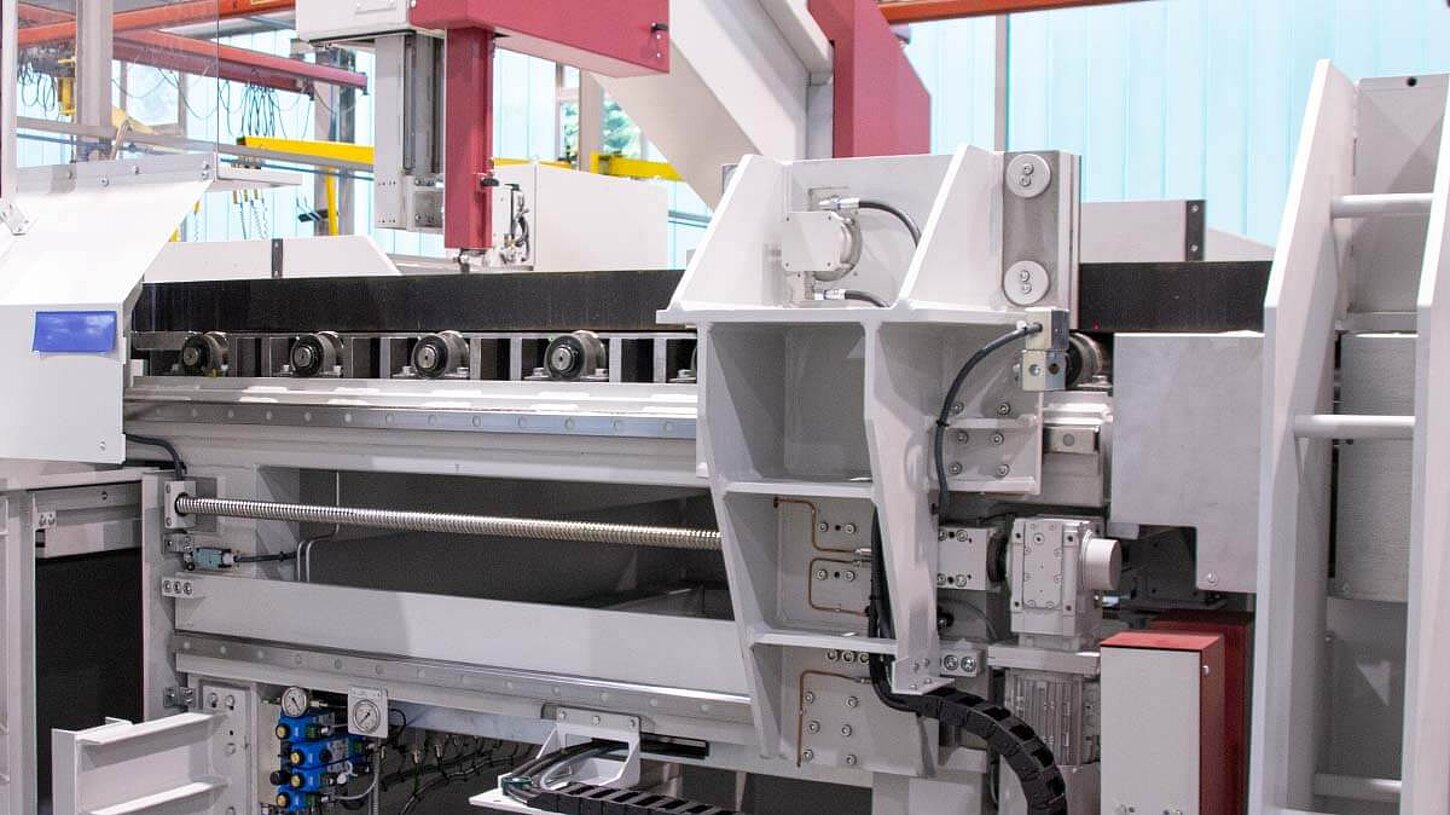

Feed gripper with ball screw and servo motor
Demo automatic plate saw VPS60-220A
Unsurpassed precise cross cutting plate saw

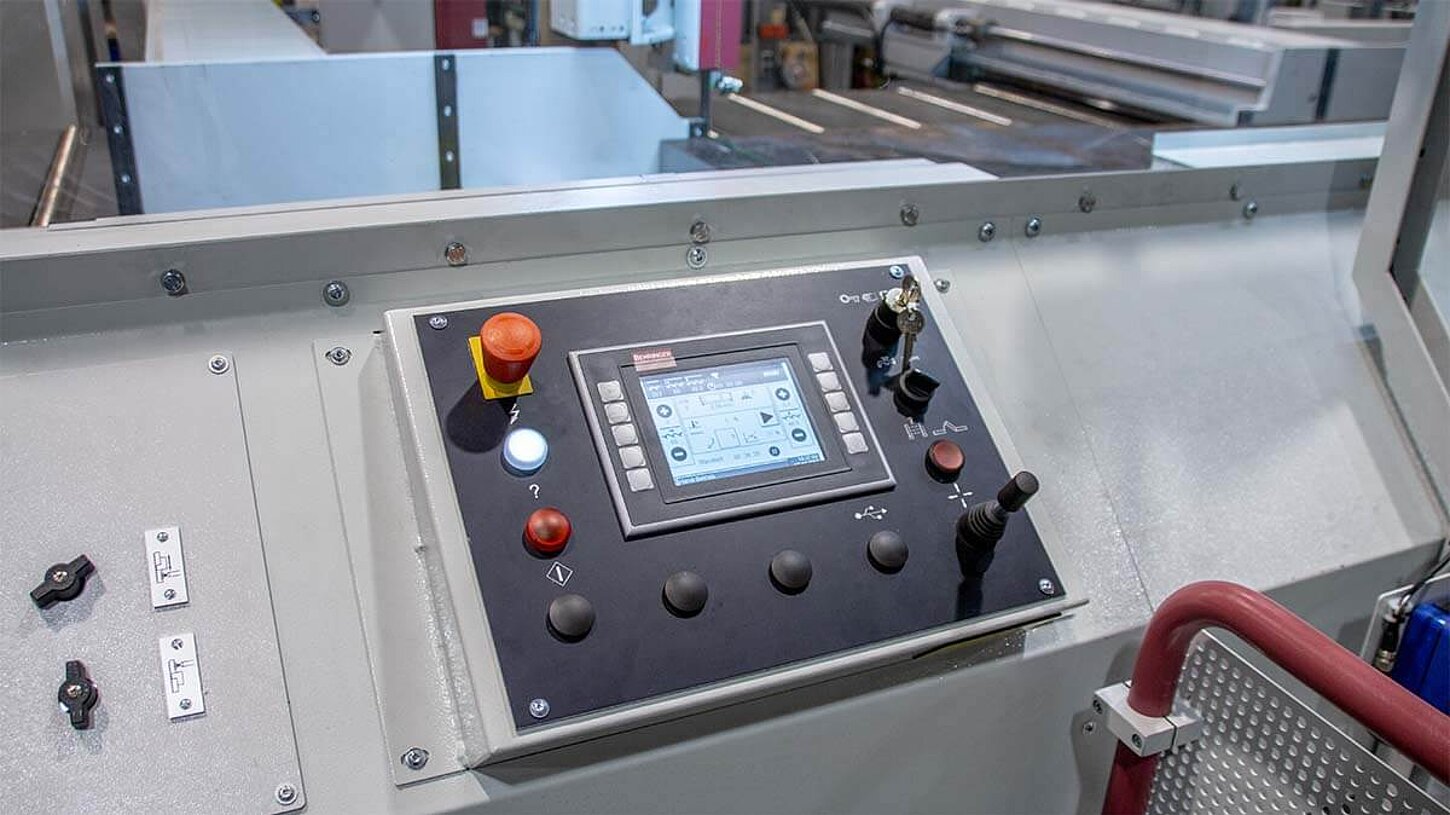

Intelligent control system

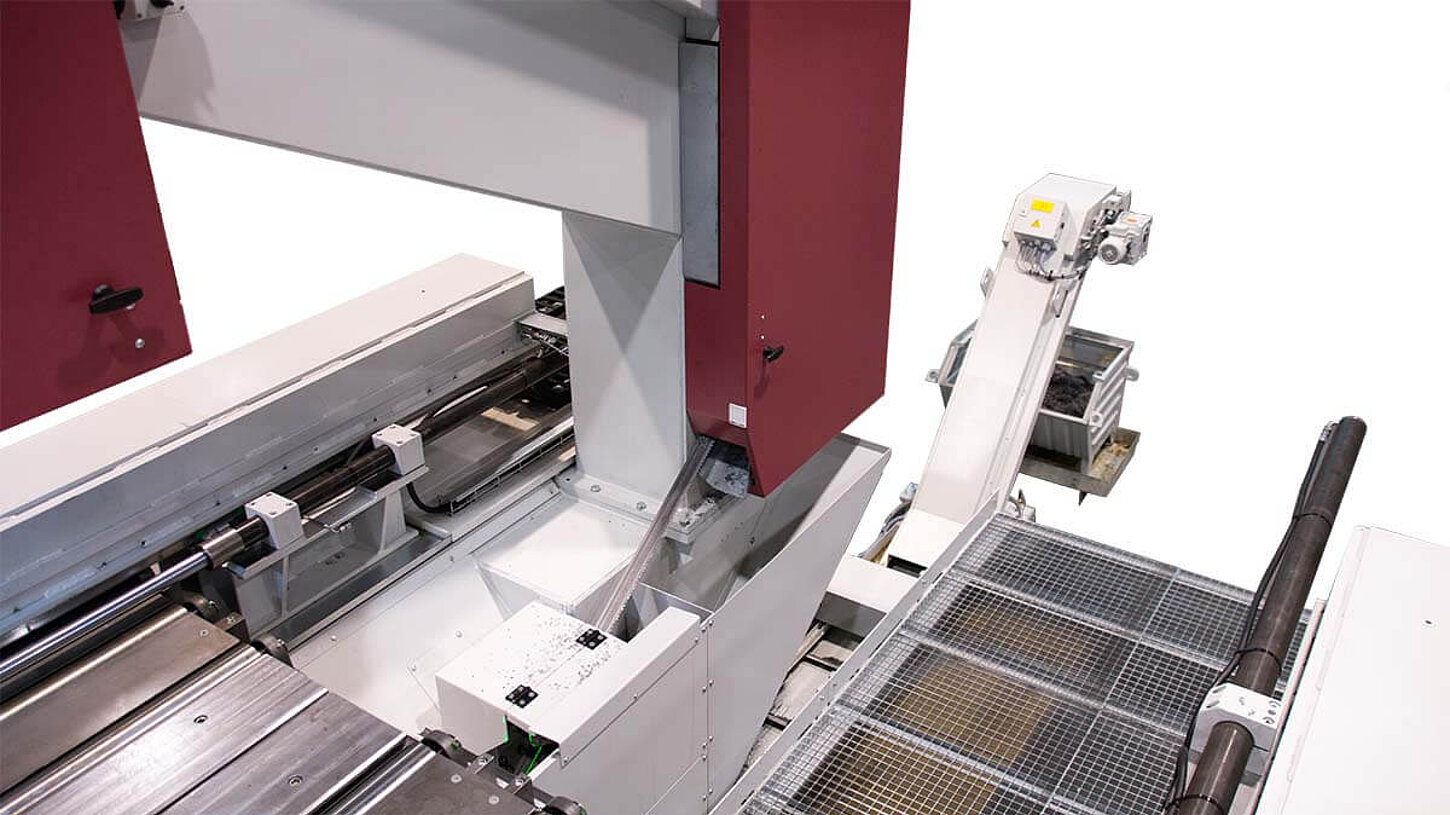

Efficient chip conveyor with integrated coolant tank
Covered material support
- Unsurpassed precision and cutting performance

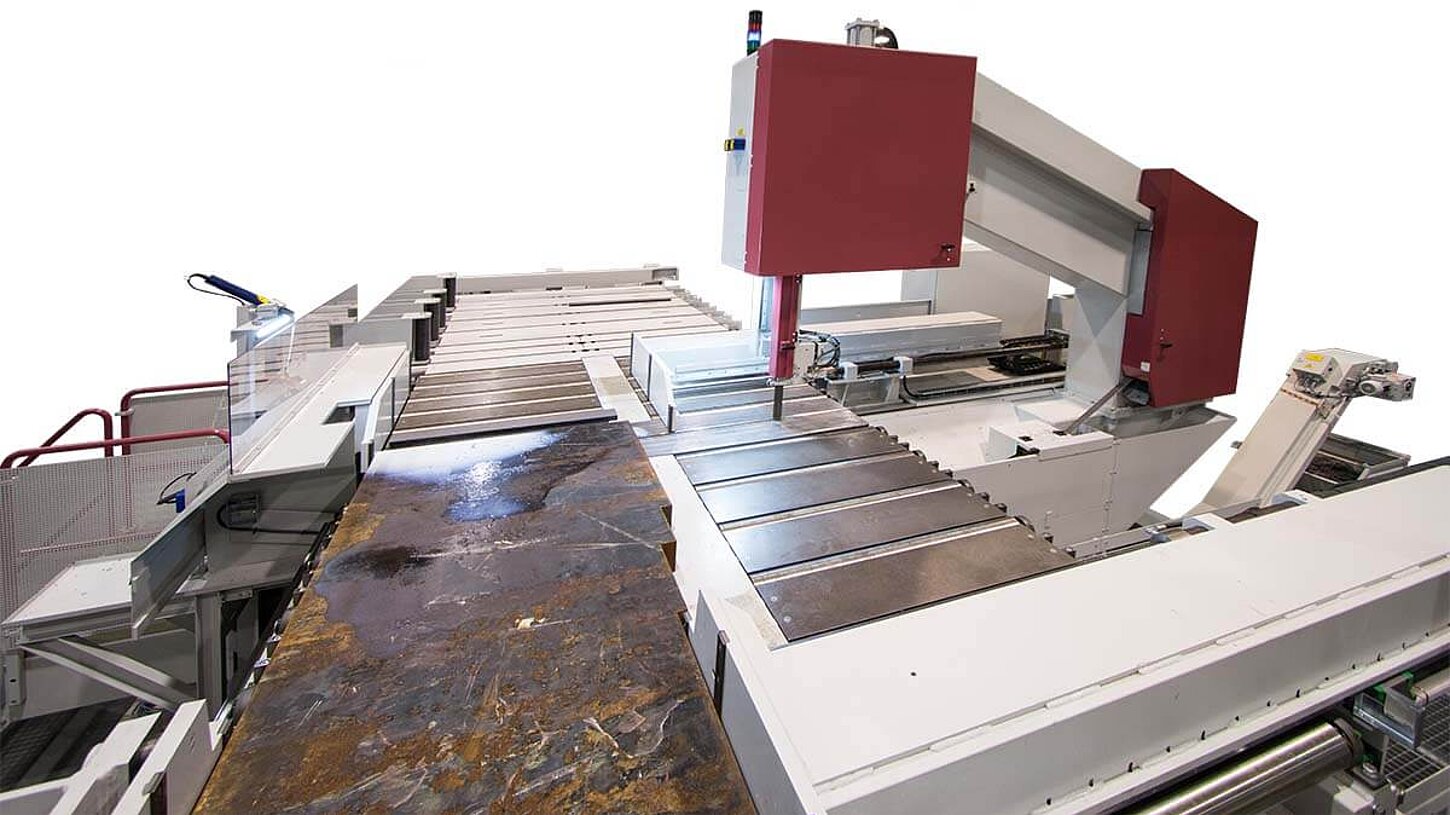

The high cutting accuracy, quiet running and long blade life are all down to the special torsion resistant design of the saw frame. In comparison to plate and block bandsaw machines from other manufacturers, the force for the saw feed is applied directly beneath the cutting point, which results in feed movements that are considerably more accurate.
- Servo Feed System
The Behringer servo feeding system ensures constant chip removal and makes better use of the capabilities of modern bandsaw blades. The rapid response of the servo feeding system to the sensors for the cutting pressure regulation systematically prevents overloading and premature wear of the bandsaw blades.
The automatic plate saw VPS60-220A can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.
|Feeding length single stroke||1,500 mm|
|Drive power||7.5 kW|
|Blade speed||17 - 120 m/min|
|Saw blade dimensions||11,080 x 54 x 1.6 mm|
|Rest piece length in automatic operation||40 mm|
|Total power||15 kW|
|Saw feed||servo-feed via pinion gear|
|Material feed||ball screw|
|Saw blade cleaning||electrically driven chip brush|
- automatic table band saw
- automatic plate saw
- automatic vertical band saw
- cross cutting plate saw
- vertical bandsaw
- table band saws
- vertical band saws
- vertical saw
- block saw
- vertical saws
- vertical saw machine
- band saw large
- steel saw
- vertical bandsaws
- aluminum bandsaw
- plate saw
- heavy duty saw
- titanium saw
- plate saw cutting
- stainless steel saw
- vertical cutting saw
- vertical plate saw
