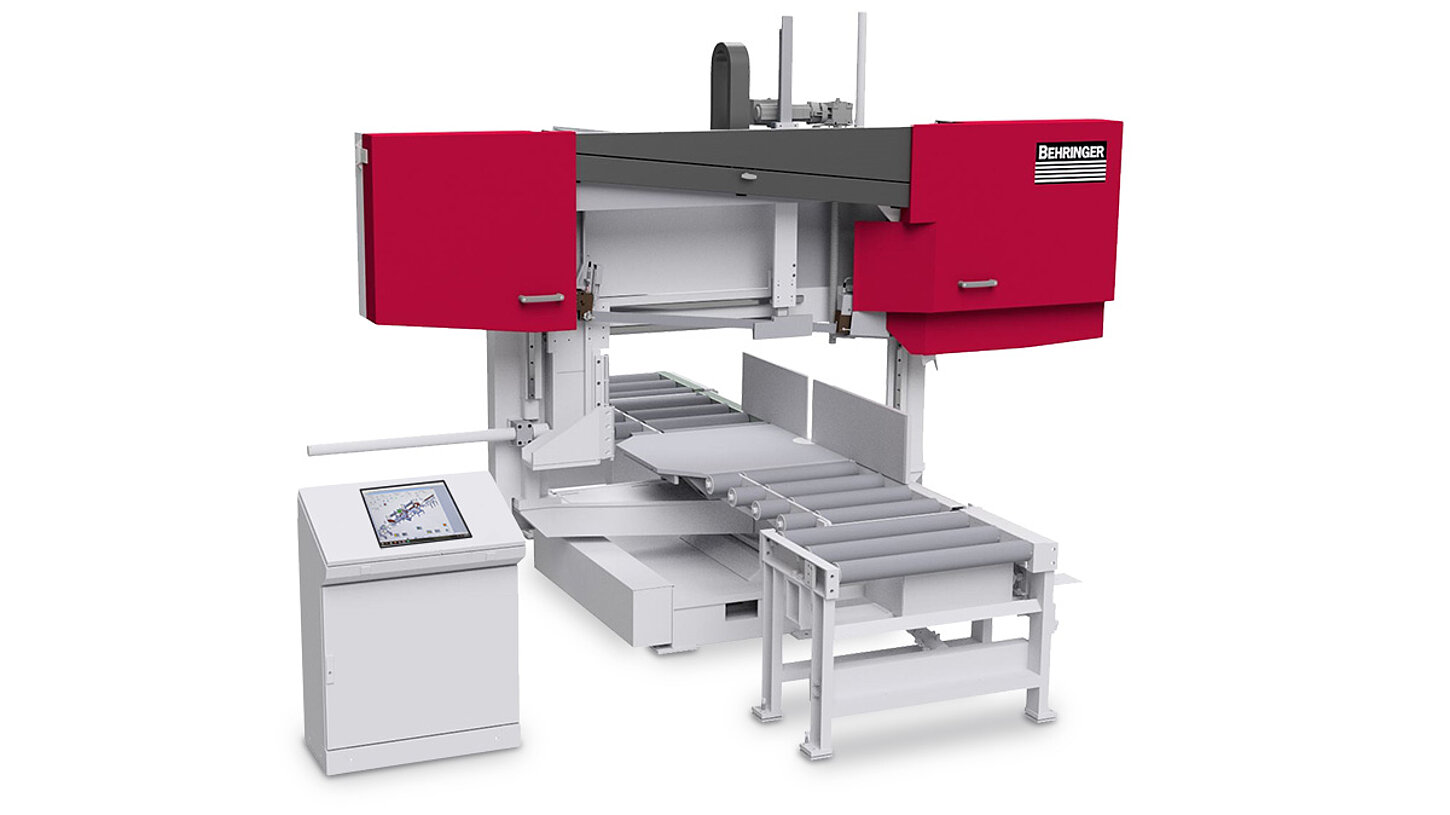

Mitre Bandsaw HBE520-926G
For steel construction and sectional steel trade
The high-performance horizontal mitre bandsaw HBE520-926G is designed for automatic sawing of structural steel, profiles and pipes. Features such as electronic mitre angle adjustment, saw feed with servo motor, Behringer cutting pressure control, automatic guide arm adjustment and a robust double clamping vice are provided as standard. Its stable saw frame, inclined band wheels and the use of vibration-damping cast components extend the service life of the saw bands tremendously.
When processing large profiles, however, material handling is in addition to the cutting performance also a key factor in determining the system throughput. The HBE520-926G mitre saw is therefore consequently designed for low-operator use in automated sawing lines. Automatic material loading and discharge systems, pre- and post-buffer lines and an intelligent control system with nesting functionality cover all requirements.
Mitre bandsaw HBE520-926G
Enclosed material table
Servo feed system with BEHRINGER cutting pressure control
Powerful PC control
Cast iron band guiding parts
Fast NC mitre angle adjustment
Electrically driven chip brush
Magnetic chip conveyor (option)
- Sensitive Behringer cutting pressure control
increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.
- Micro Spray System
When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via two nozzles. This guarantees a long service life of the saw blade and a clean working environment.
The mitre bandsaw HBE520-926G can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.
Efficient Material Handling
With Behringer's material handling solutions, you achieve high plant throughput in low-operator mode.
|Cutting range 90° round||520 mm|
|Cutting range 90° flat||920 x 520 mm|
|75° Mitre left round / flat||520 mm / 920 x 520 mm|
|60° Mitre left round / flat||520 mm / 810 x 520 mm|
|45° Mitre left round / flat||520 mm / 640 x 520 mm|
|30° Mitre left round / flat||430 mm / 430 x 520 mm|
|75° Mitre right round / flat||520 mm / 920 x 520 mm|
|60° Mitre right round / flat||520 mm / 810x 520 mm|
|45° Mitre right round / flat||520 mm / 640 x 520 mm|
|Smallest dimension to be sawn round||30 mm|
|Smallest dimension to be sawn flat||30 x 30 mm|
