3D Saw HBE320-523 3D

The flexible sawing solution for additively manufactured components

The horizontal bandsaw HBE320-523 3D is designed for sawing 3D printing plates in different sizes up to 520 x 300 mm. The individual production of the work holding according to customer requirements offers a high degree of flexibility when sawing 3D printing plates in different sizes and shapes. The zero-point stop system with alignment to the printing plate simplifies set-up operation and reduces sources of error. The fixture of the 3D saw is movable, ensuring easy loading and handling.

In order to optimally adapt the sawing system to the specific process, Behringer offers various options such as a machine housing with extraction option, minimum quantity lubrication as well as individual clamping options according to customer requirements.

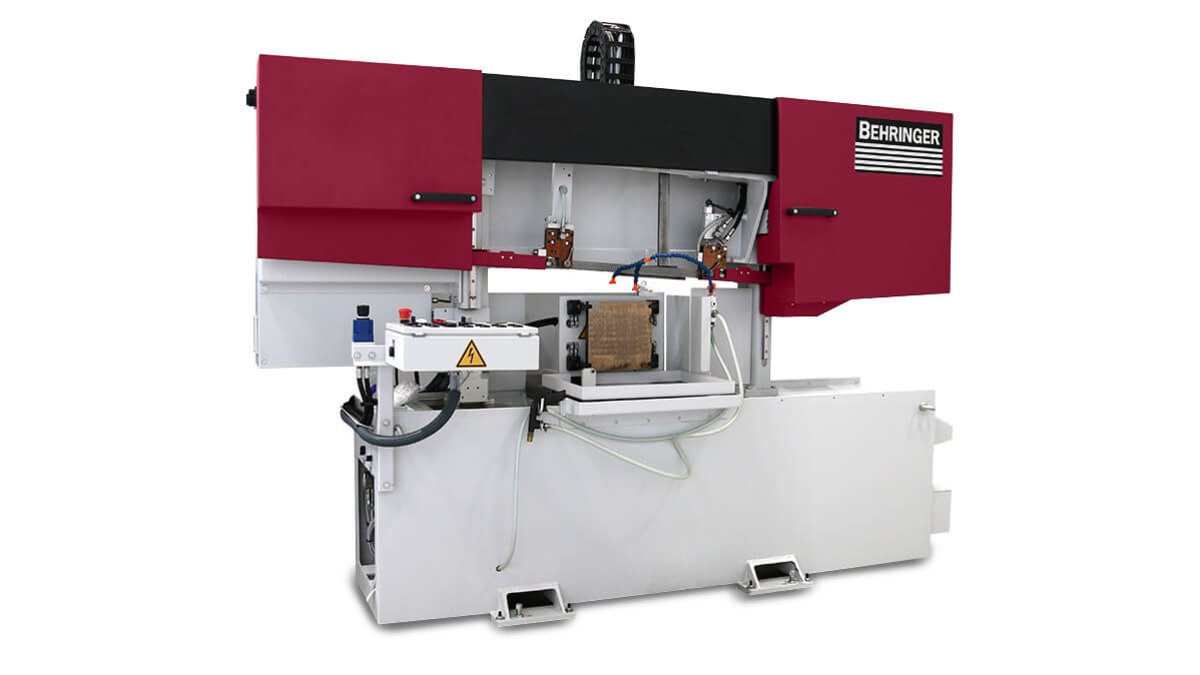

  • 3D saw HBE320-523 3D for sawing additively manufactured components

    3D Saw HBE320-523 3D

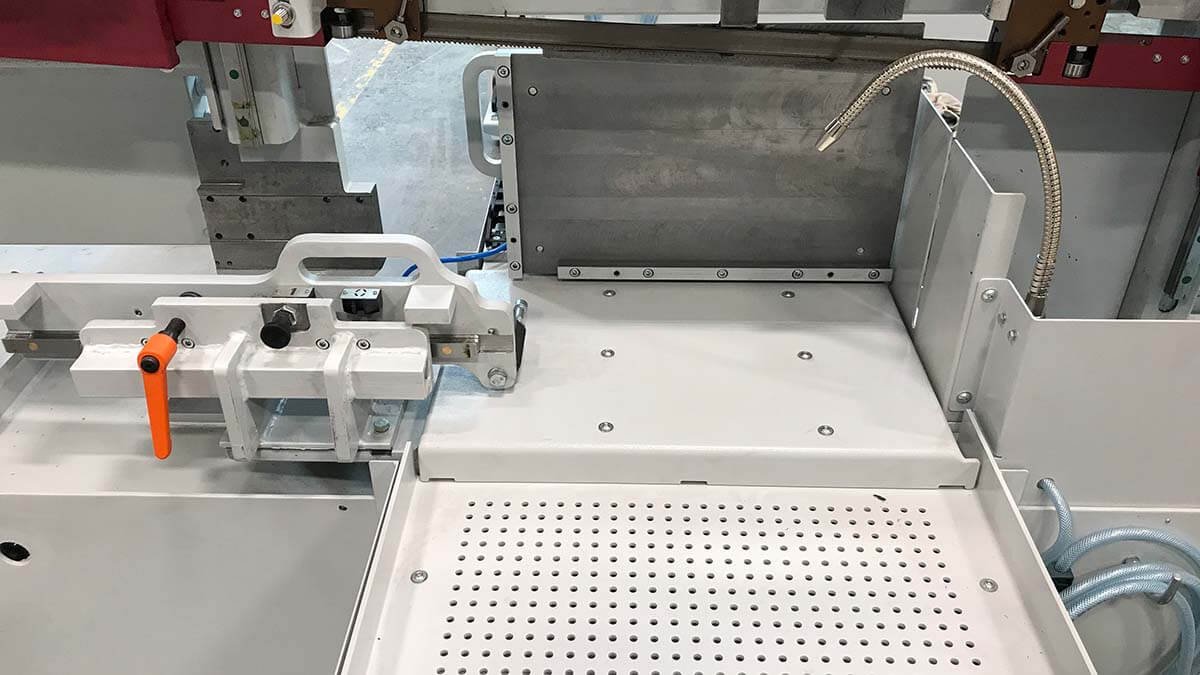

  • Zero point stop for aligning the 3D print plates

    Easy setup due to zero point stop system

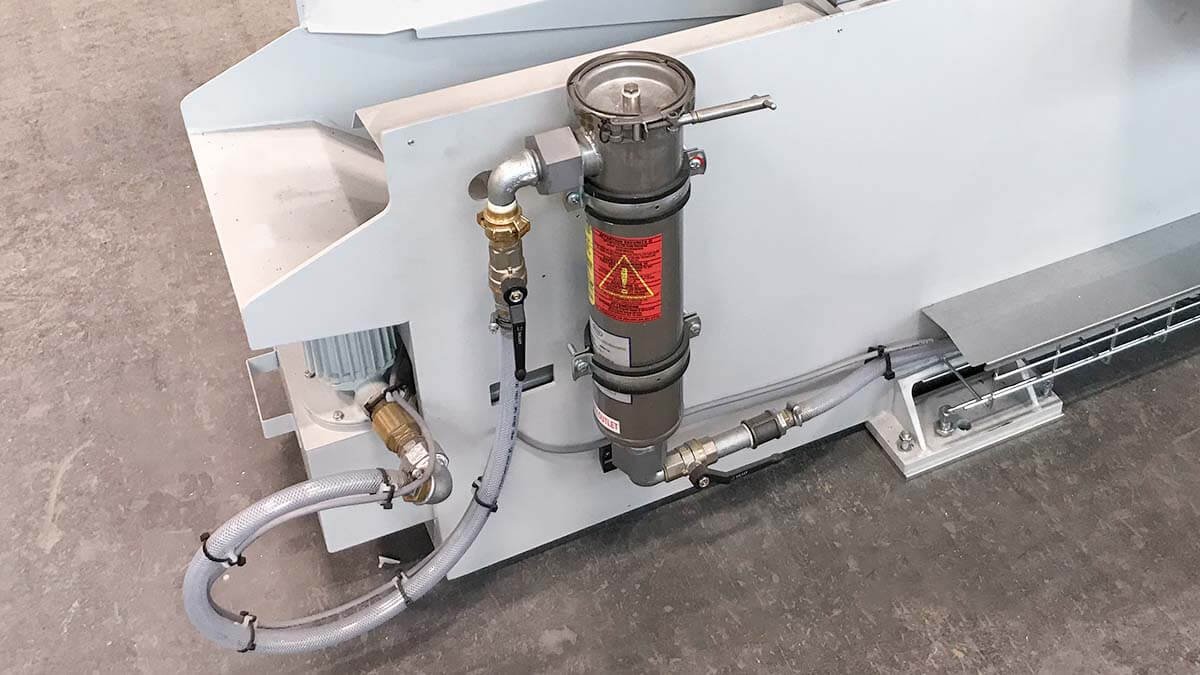

  • 3D saw HBE320-523 3D coolant cleaning system

    Coolant filtration

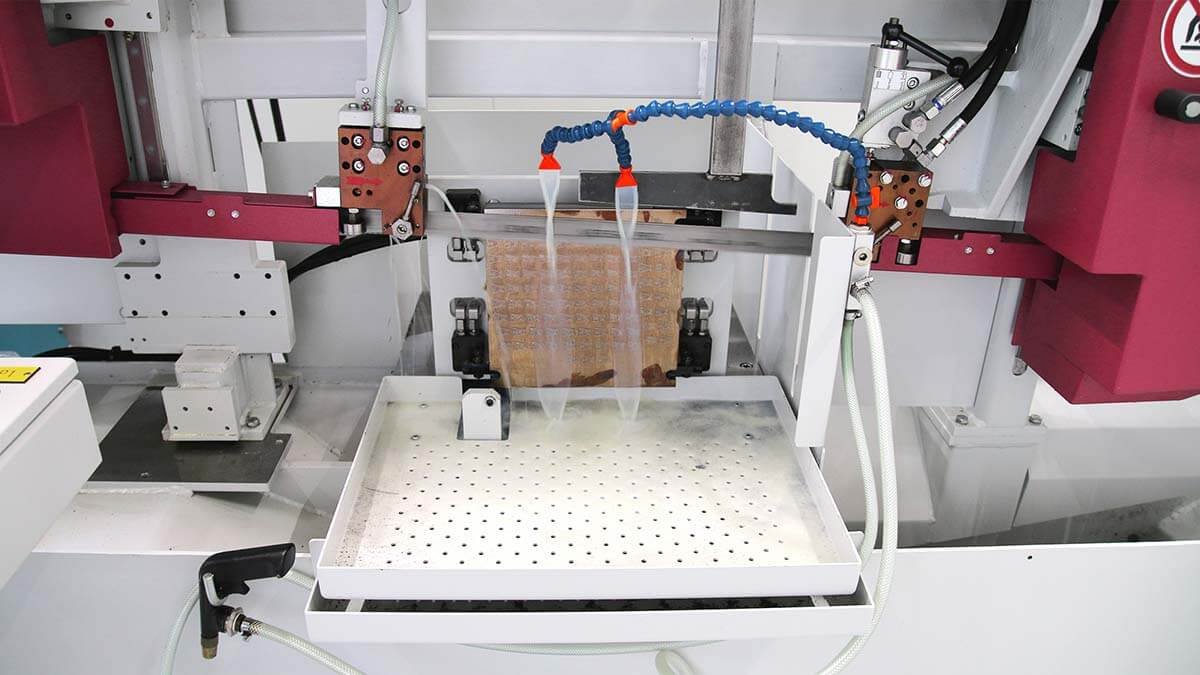

  • 3D saw HBE320-523 3D sawing a 3D base plate

    Sawing process significantly faster than wire EDM machines

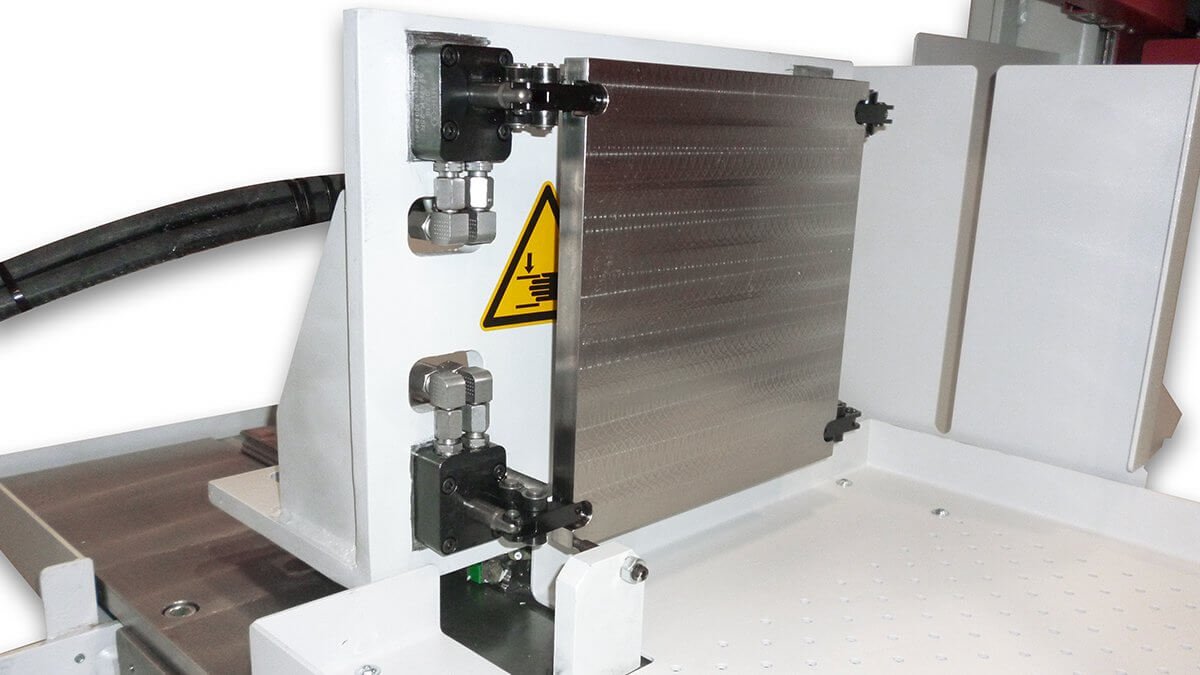

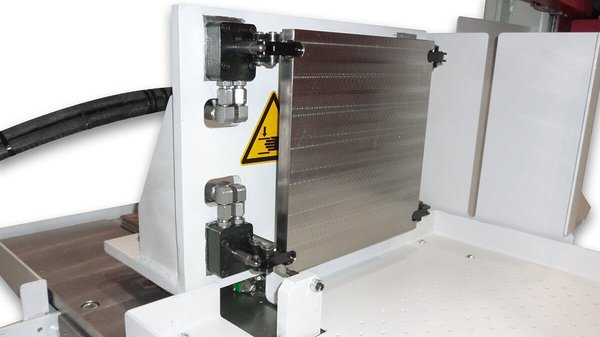

  • 3D printing plate clamped on the 3D saw HBE320-523 3D

    Individual clamping concepts (e.g. hydraulic clamping units)

  • Behringer metal cutting bandsaw HBE320-523 drive wheel made of vibration damping cast iron

    Cast iron band guiding parts

  • Behringer metal cuttig bandsaw HBE320-523 3D electric chip brush

    Electrically driven chip brush

Features of the 3D saw HBE320-523 3D

  • Quick and easy loading and unloading
    The shortest possible setup times are achieved because the HBE320-523 3D is equipped with a device for holding additively printed base plates. The printing plates can simply be inserted into the device by hand or by means of lifting gear. Manual alignment to the saw blade is not necessary.

  • Clamping options according to customer requirements
    The workpiece holder is equipped with a customised borehole pattern as standard to attach the 3D printing plates. Individual clamping options such as hydraulic lever clamps can also be added as an option.

  • Housing and exhaust system (optional)
    Depending on the material of the 3D printing components and the lubricant used, dusts or vapors can be generated and released into the ambient air. To prevent this, it is advisable to use an enclosure with a connected extraction system that effectively filters both dusts and aerosols from the air.

  • Sensitive BEHRINGER cutting pressure control
    increases the cutting performance when sawing 3D printed components, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

  • Precision portal-design guide system
    The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

  • Zero-point stop system
    A clever solution for aligning the printed panels under the saw line is the standard zero-point stop system. Since the plate surface serves as a reference for positioning, no re-adjustment of the saw is required for thinning plates.

  • Coolant cleaning
    A standard filter unit cleans the coolant from particles and powder residues that are released during the sawing of printed components. This unit noticeably increases the service life of the coolant.

  • Micro Spray System (optional)
    When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via two nozzles. This guarantees a long service life of the saw blade and a clean working environment.

  • Electrically driven chip brush
    with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

  • Energy efficient
    The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

Individual Configuration

The 3D saw HBE320-523 3D can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data 3D saw HBE320-523 3D

Maximum printing plate size flat W x H 520 x 300 mm
Minimum printing plate size flat W x H 100 x 100 mm
Maximum print height 400 mm
Minimum plate thickness 20 mm
Drive power 2.6 kW
Blade speed 15-110 m/min
Saw blade dimensions 5,300 x 34 x 1.1 mm
Total power 3.7 kW
Printing plate positioning mechanical zero-point stop
Length 1,150 mm
Width 2,750 mm
Height 2,150 mm
Weight 1,600 kg
Material support height 830 mm
