Mitre Circular Saw PSU 450 H

The "universal" for metalworking and fabrication

Universal, precise and fast - these are the performance features of the PSU 450 H semi-automatic mitre saw for cutting metals. Designed for cutting profiles, pipes and solid material in metal and comparable materials, this machine is specifically designed to address the needs of locksmiths and metalworking shops. The mitre setting is equipped with convenient fixed stops at 90°, 45° and 30°. The 450 mm diameter saw blade used offers a wide cutting range - also for mitre cuts.

The heart of the PSU mitre saw unit is the worm gear unit with Eisele shock-absorbing feature, produced in-house. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface and the blade life.

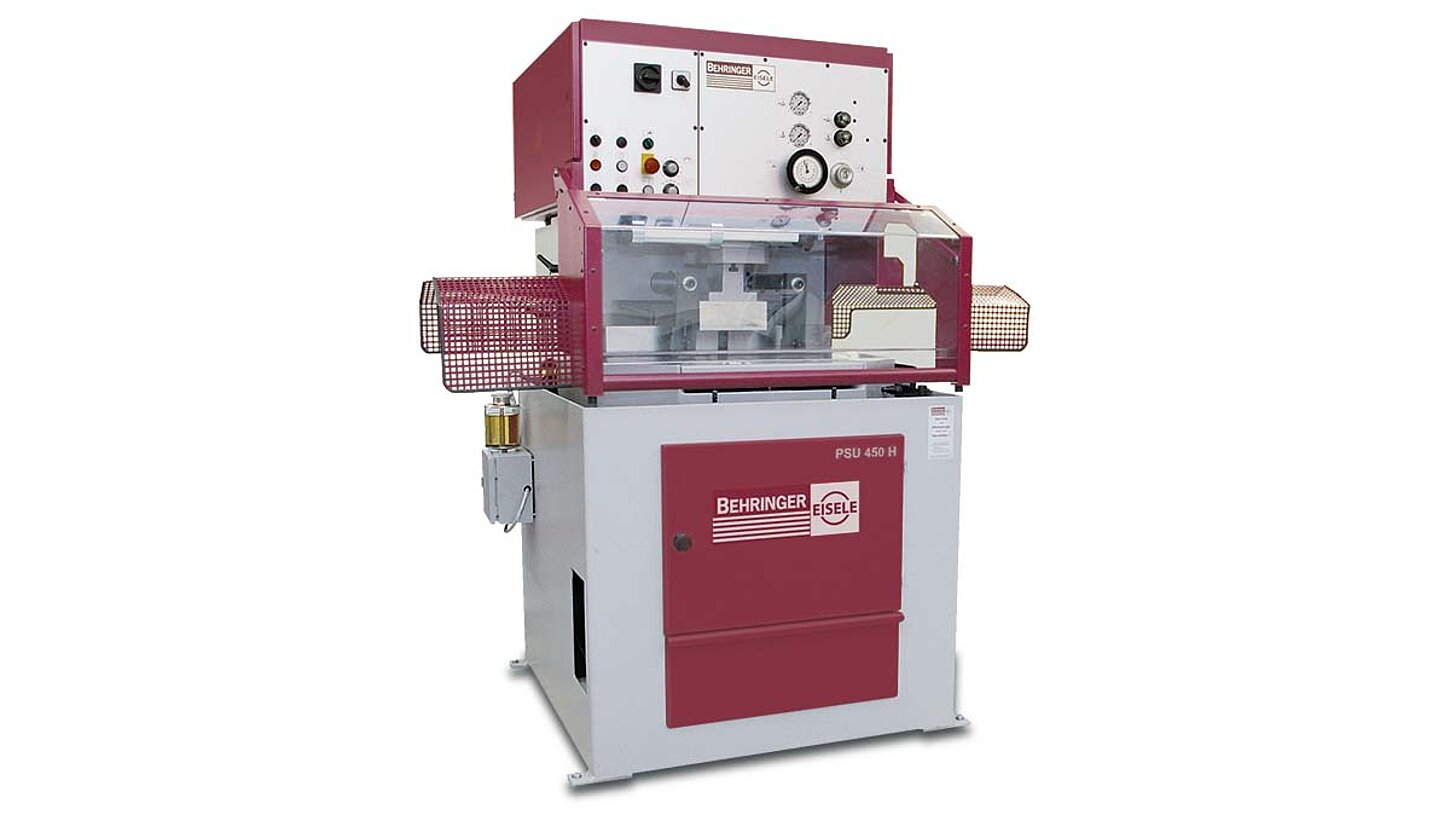

  • Behringer Eisele mitre circular saw PSU 450 H

    Mitre circular saw PSU 450 H

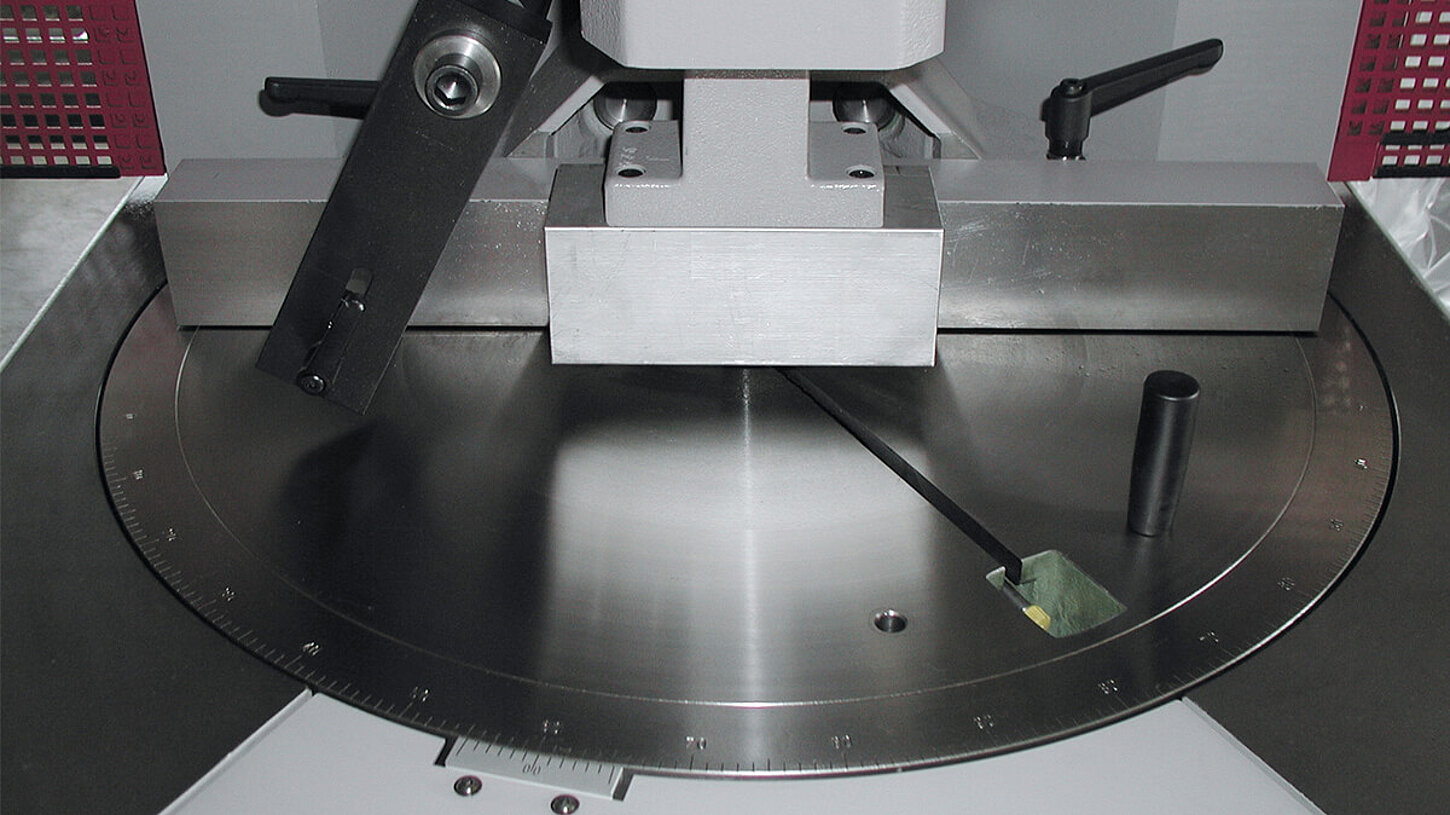

  • Behringer Eisele mitre circular saw PSU 450 H material table with mitre adjustment

    Convenient mitre adjustment ± 30°

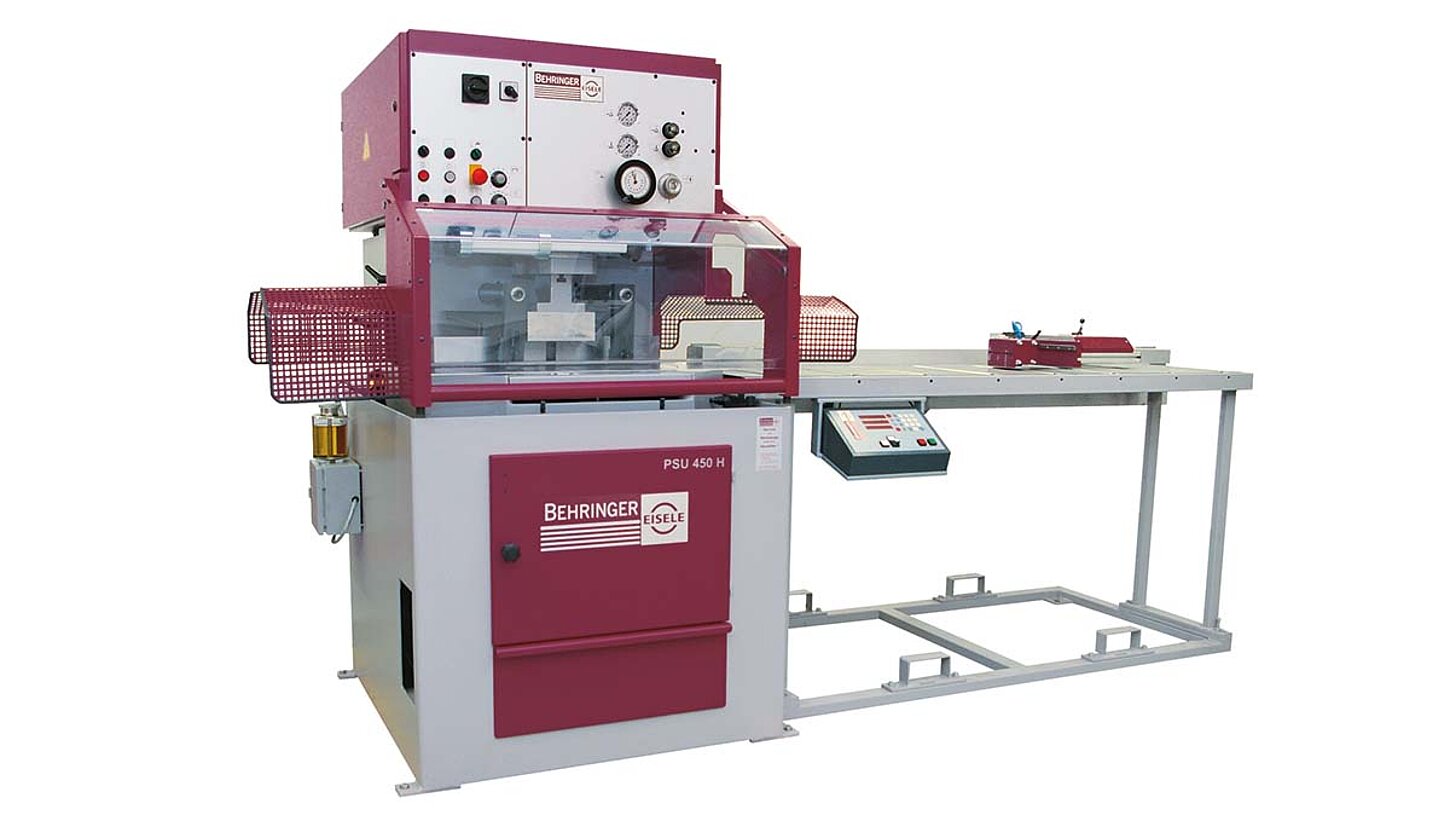

  • Behringer Eisele mitre circular saw PSU 450 H with measuring system ELA

    Mitre saw with individual material handling

Features of the mitre circular saw PSU 450 H

  • Optimum chip flow
    also when sawing tubes and hollow profiles due to the saw feed from bottom up.

  • Extensive range of materials
    The mitre circular saws of the PSU series cover an extensive range of materials such as flat, angular and solid material, pipes and special profiles. They are therefore ideally suited for use in industry and workshops.

  • Sturdy machine base
    The heavy machine stand and the vibration-damping cast iron components made by Behringer ensure a low-vibration sawing process and thus an increase in tool life.

  • High cutting quality
    Workpiece clamping on both sides of the saw blade ensures a clean cutting surface and low tolerances.

  • Robust and durable
    The heart of the PSU saw units is a worm gear unit with Eisele shock-absorbing feature, produced in-house. The robust design of the gearbox consistently dampens vibrations. This ensures a good cutting surface, long saw blade life and a long service life of the saw.

  • Convenient mitre adjustment
    The mitre angle is easy to set thanks to the well thought-out design with the saw unit at the bottom. In addition, fixed stops at 30°, 45° and 90° are provided as standard.

  • Micro spray system
    When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via a nozzle. This guarantees a long tool life and a clean working environment.

Individual Configuration

The mitre circular saw PSU 450 H can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.


Technical data mitre circular saw PSU 450 H

Flat 90° 240 x 70 / 390 x 30 mm 1)
Flat 45° 170 x 70 / 280 x 30 mm 1)
Flat 30° 120 x 70 / 190 x 30 mm 1)
Square 90° 140 x 140 mm
Square 45° 125 x 125 mm
Square 30° 100 x 100 mm
Round 90° 150 mm
Round 45° 145 mm
Round 30° 120 mm
Smallest dimension to be sawn round 10 mm
Smallest dimension to be sawn flat 10 x 10 mm
Drive power 3.0 / 3.6 kW
RPM standard 6 / 12 / 24 / 48 min-1
RPM optional 12 / 24 / 48 / 96 min-1
Saw blade diameter 450 mm
Saw feed hydraulic
Material clamping hydraulic
Length 1,450 mm
Width 1,610 mm
Height 1,900 mm
Weight 1,350 kg
Material support height 1,020 mm

1) With adjustable material stop
