Cold Saw VMS 370 PV

Classics in any workshop that requires precise metal cuts

More than 250,000 cold saws sold worldwide speak for themselves. Simple operation, robust design and precise cuts make the metal-cutting cold saws of the VMS series a reliable partner in the workshop and factory. They are real all-rounders when it comes to cutting solid materials, tubes and profiles. In addition to the automatic saw feed, the VMS 370 PV also offers pneumatic clamping of the material.

The heart of the VMS circular saw unit is the worm gear unit with Eisele shock-absorbing feature, produced in-house. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface, the blade life and the service life of the saw.

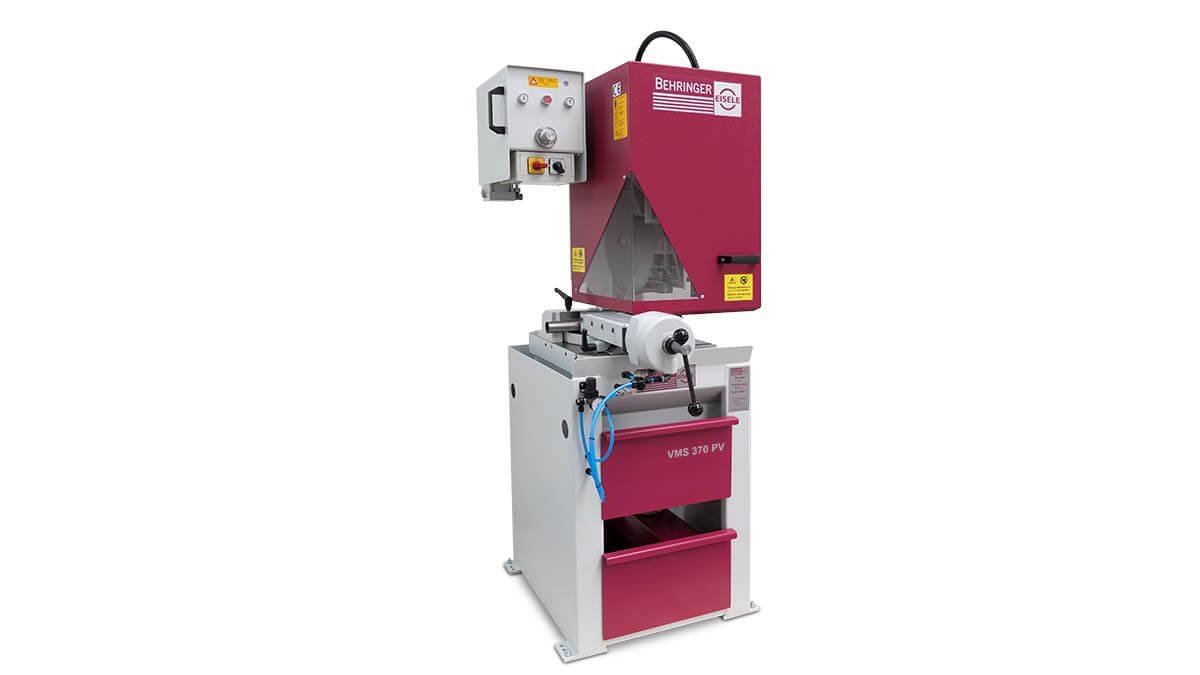

  • Behringer Eisele cold saw VMS 370 PV

    Cold Saw VMS 370 PV

  • Behringer Eisele cold saw VMS 370 PV mit robustem Schneckengetriebe aus eigener Herstellung

    Worm gearbox from our own production

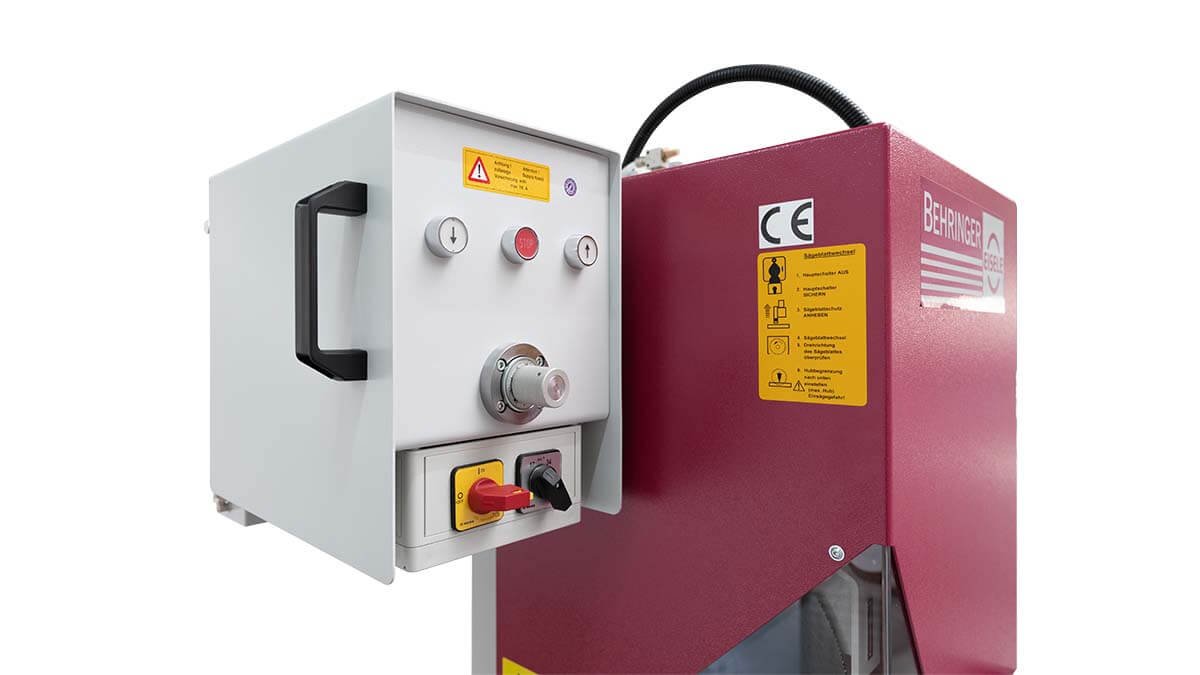

  • Behringer Eisele cold saw VMS 370 PV Vorschubeinstellung für den pneumatischen Sägevorschub

    Hydro-pneumatic saw feed

  • Behringer Eisele cold saw VMS 370 PV Skala zur Anzeige des Gehrungswinkels

    Convenient mitre adjustment

  • Behringer Eisele cold saw VMS 370 PV coolant device

    Coolant unit of the circular saw

  • Behringer Eisele cold saw VMS 370 PV mit pneumatischer Materialspannung

    Pneumatic quick clamping device

  • Behringer Eisele cold saw Behringer Eisele cold saw VMS 370 PV Einstellung des Sägeeintrittspunkts und Sägeaustrittspunkts

    Convenient stroke adjustment of the saw blade

  • Behringer Eisele cold saw VMS 370 PV Micro-Sprühsystem

    Micro spray system (option)

Features of the cold saw VMS 370 PV

  • Worm gear unit with Eisele shock-absorbing feature
    An ideally designed gearbox from our own production offers long blade life and maximum durability.

  • User-friendly mitre adjustment
    with fixed stops. This allows changing mitre angles to be set precisely and quickly.

  • Low space requirement
    High productivity with simultaneously compact dimensions of less than 1 m².

  • Micro spray system (option)
    When sawing profiles, pipes and solid material, the minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via a nozzle. This guarantees a long tool life and a clean working environment.

  • High flexibility
    The cold saw VMS 370 PV# can be flexibly adapted to your material flow.

  • Automatic saw feed
    The semi-automatic model with hydro-pneumatic saw feed and quick clamping device offers a high level of operating comfort as well as consistent cutting quality.

  • Sturdy machine base
    The heavy machine stand and the vibration-damping cast iron components made by Behringer ensure a low-vibration sawing process and thus an increase in tool life.

  • Comfortable stroke adjustment
    The entry and exit points of the saw blade can be conveniently adjusted using two limit switches.

  • Large dimensioned protective cover
    ensures an easy and quick saw blade change and a high level of safety during work.

  • Clean machine design
    The coolant unit and the chip drawer are integrated into the machine base.

Individual Configuration

The cold saw VMS 370 PV can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data cold saw VMS 370 PV

Flat 90° 200 x 100 mm
Flat 45° 140 x 100 mm
Flat 30° 100 x 100 mm 1)

Square 90° 120 mm 2)
Square 45° 100 mm
Square 30° 90 mm 1)

Round 90° 130 mm
Round 45° 130 mm
Round 30° 105 mm 1)
Drive power 2.0 / 2.6 kW
RPM standard 17 / 34 - 34 / 68 min-1
RPM optional 8 / 16 / 32 / 64 min-1
Saw blade diameter 370 mm
Saw feed hydro-pneumatic
Material clamping pneumatic
Length 1,335 mm
Width 865 mm
Height 2,175 mm
Weight 470 kg
Material support height 900 mm

1) Only to the right side
2) When using additional jaw
