Production band saw HBE663A Performance

Maximum performance for solids and bundles!

The automatic saw HBE663A Performance is the specialist of the HBE Performance series for sawing material bundles. Due to its double vice and the retracting fixed jaws, even strapped bundles can be positioned precisely. In combination with the robust vertical clamping devices, the bundle is securely clamped during sawing. The industrial saw's feeding gripper can be configured in lengths of 1,500 mm and 3,000 mm for sawing long cut-off lengths.

  • Behringer production band saw HBE663A Performance

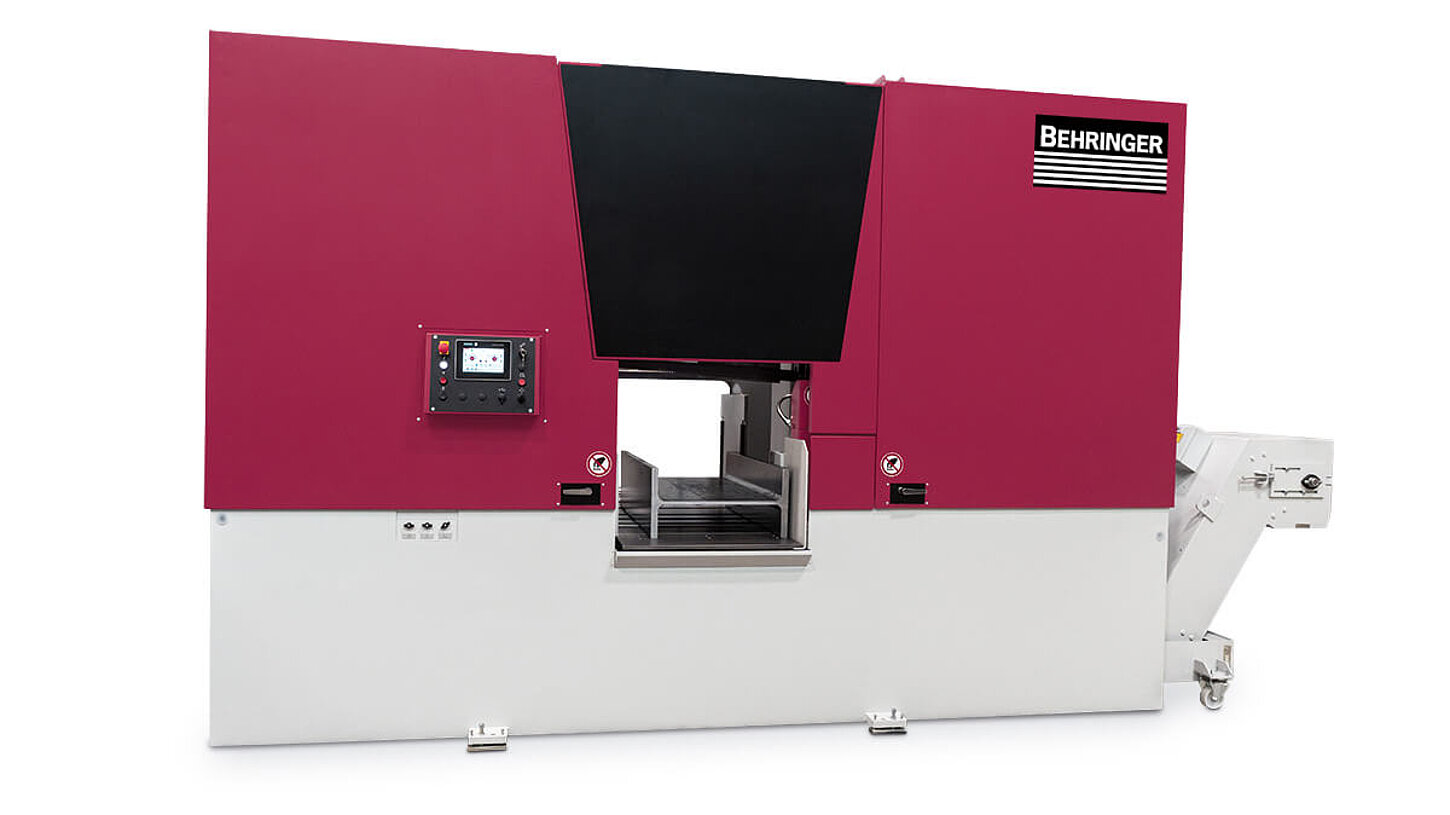

    Production band saw HBE663A Performance

  • Behringer production band saw HBE663A Performance servo driven saw feed

    Servo-downfeed with cutting pressure control

  • Behringer machine control BehrCtrl10

    Intuitive BehrCtrl10 touch control

  • Behringer production band saw HBE663A Performance cast iron bow frame

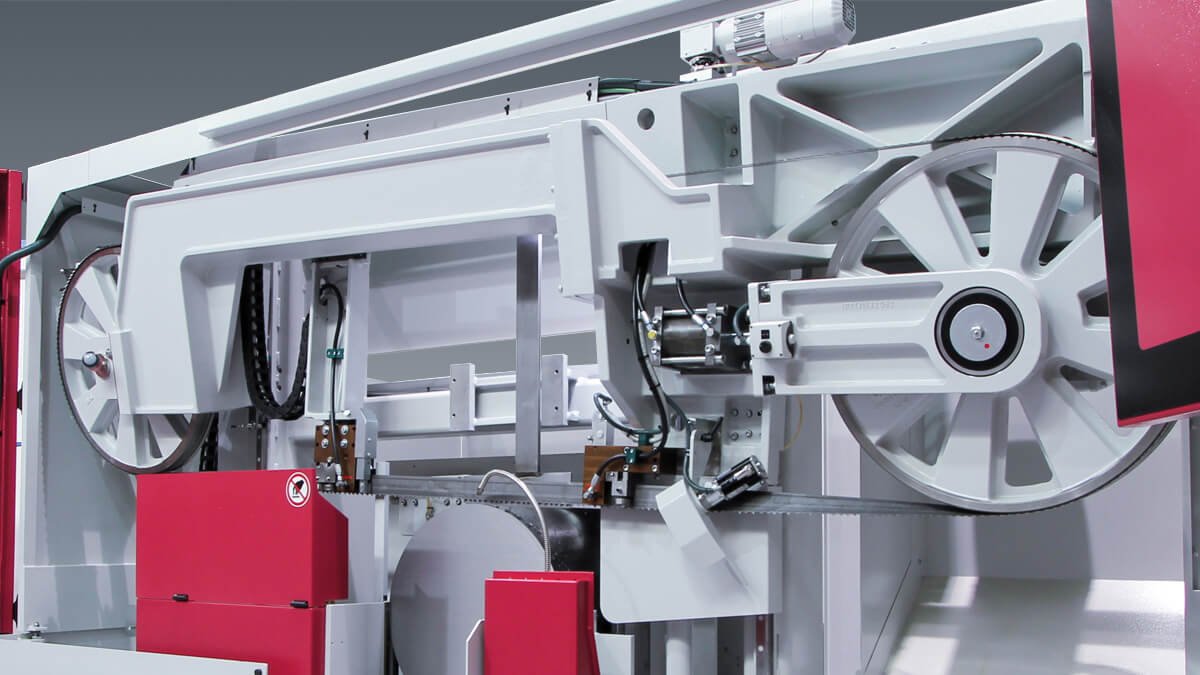

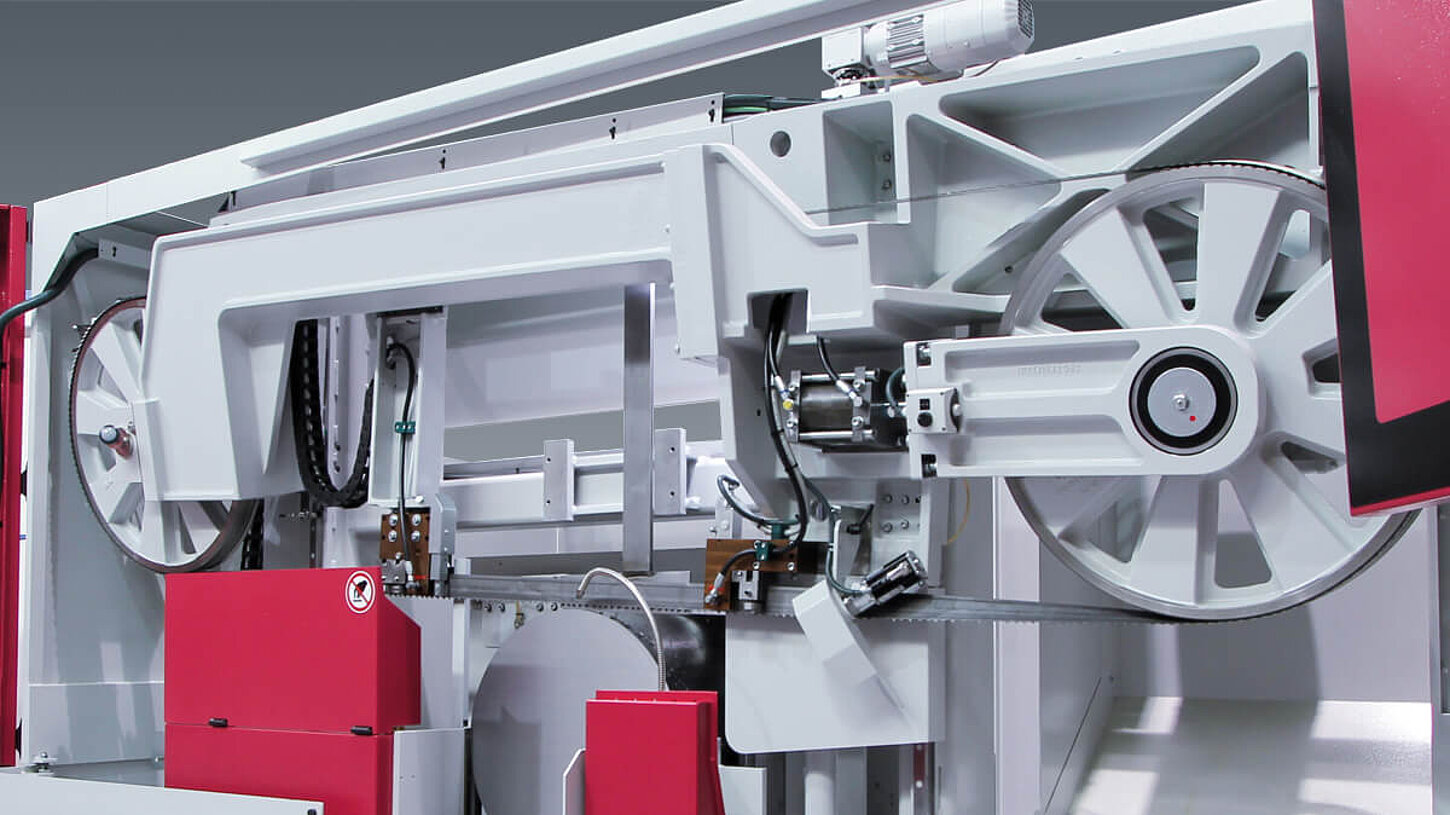

    Cast iron band guiding parts

  • Youtube Logo

    Video of the industrial saw HBE663A Performance

  • Behringer production band saw HBE663A Performance electrically driven chip brush

    Electrically driven chip brush

  • Behringer production band saw HBE663A Performance feeding gripper

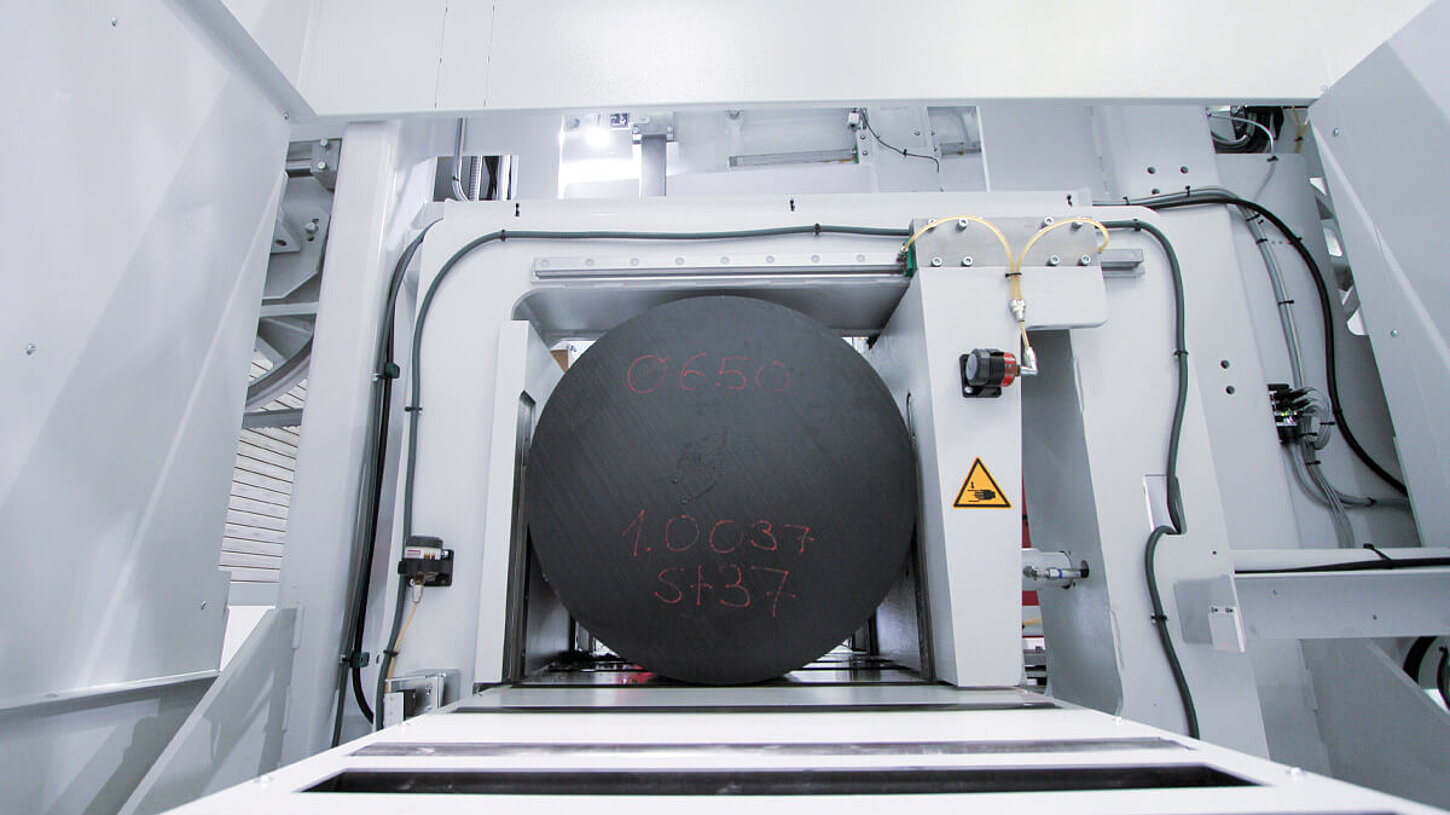

    Massive feed gripper with ball screw

  • Behringer production band saw HBE663A Performance chip conveyor in material flow direction

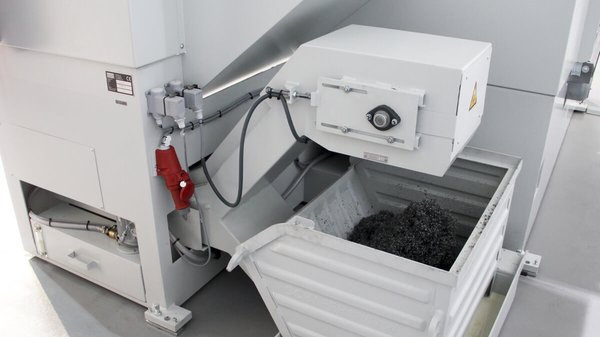

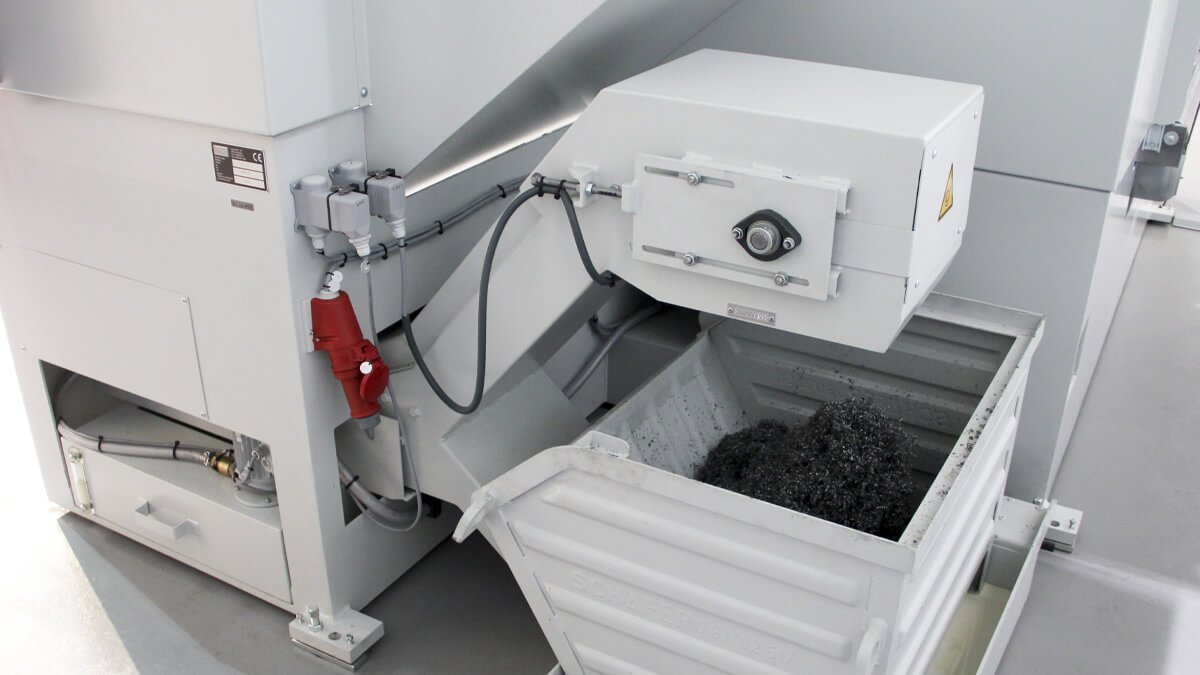

    Chip disposal in material flow direction (option)

  • Behringer production band saw HBE663A Performance bundle clamps

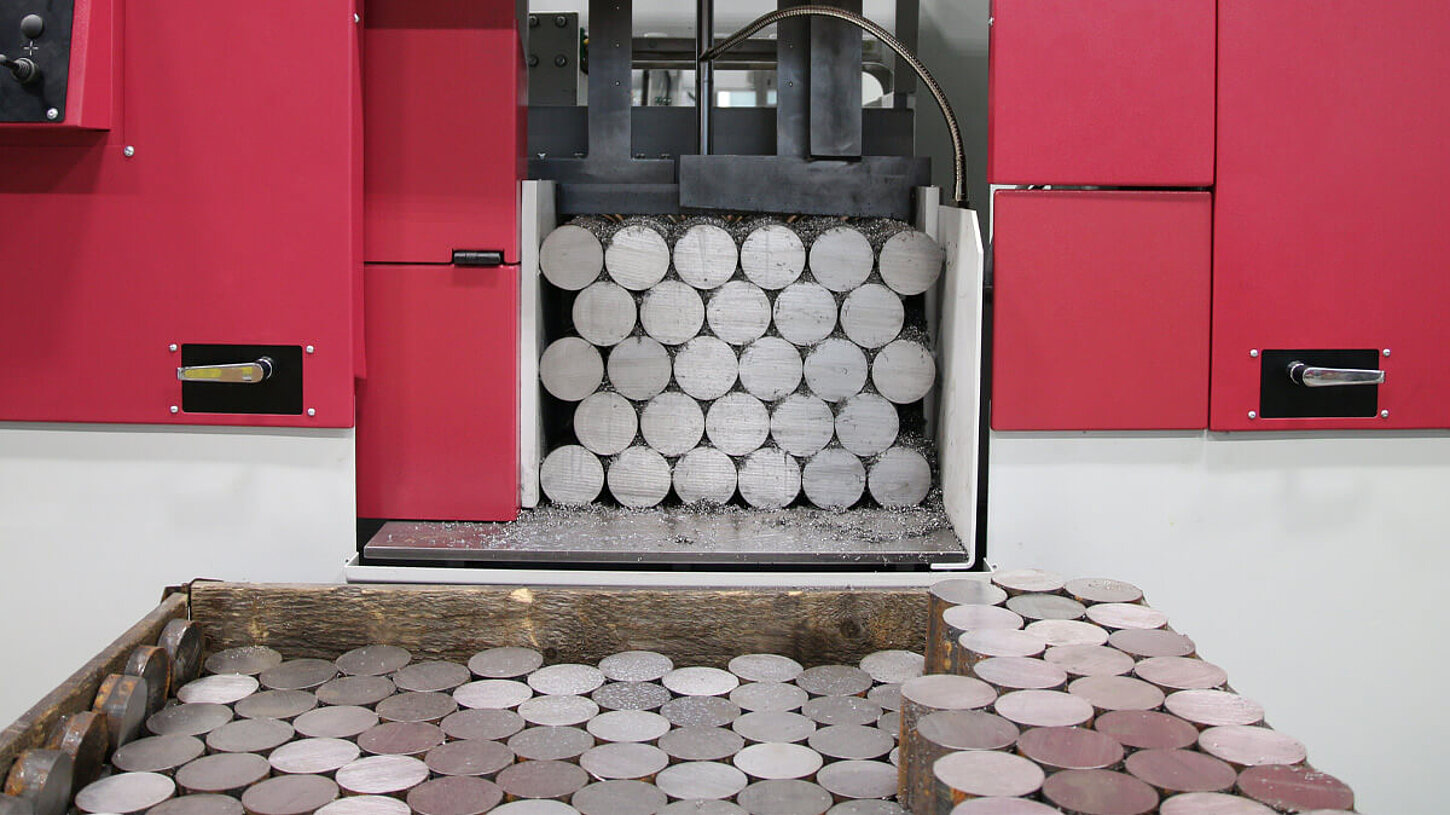

    Robust bundle clamping device (option)

Features of the production band saw HBE663A Performance

  • Reliable sawing of bundles
    is achieved thanks to the combination of double clamping vice, retracting fixed vice jaws and solid vertical clamping devices.

  • Double clamping vice
    offers process reliability - especially when sawing bundles or making single cuts. The clamping jaws of the band saw are arranged on the infeed and outfeed side and clamp both the starting material and the finished cut.

  • Servo downfeed system
    The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds. Your advantage: higher cutting performance and longer band life!

  • Automatic guide arm
    Optimum sawing result without any adjustments - even with frequently changing material sizes.

  • Sensitive Behringer cutting pressure control
    increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

  • Auto-Feed-Control
    Selection of the material in an extensive material database. The AFC automatically calculates the optimal values for saw feed and cutting speed.

  • Robust feeding gripper
    Precise material handling of heavy workpieces thanks to the robust feeding gripper with retracting fixed vice jaw. The feeding length can optionally be extended to 1,500 mm or 3,000 mm.

  • Economical use of carbide saw blades
    due to robust design, use of latest servo technology and well dimensioned chip disposal.

  • 3° incline of the saw band
    increases the cutting performance when sawing hollow profiles and beams and reduces the formation of burrs.

  • Precision portal-design guide system
    The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

  • Powerful chip conveyor
    Optimal chip disposal thanks to the funnel-shaped machine base and the paddle-style chip conveyor with an integrated coolant tank. The ejection height of 800 mm allows the use of large chip buckets.

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

Individual Configuration

The production band saw HBE663A Performance can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.


Technical data production band saw HBE663A Performance

Cutting range 90° round 660 mm
Cutting range 90° flat 710 x 660 mm
Smallest dimension to be sawn round 20 mm
Smallest dimension to be sawn flat 20 x 20 mm
Feeding length single stroke 540 mm (option 1,500 | 3,000 mm)
 Drive power 5.5 kW
Blade speed 10 - 110 m/min
Saw blade dimensions 8,750 x 54 x 1.6 mm
Rest piece length in automatic operation 50 mm
Total power 12 kW
Saw feed servo-feed via ball screw
Material feed ball screw
Material clamping hydraulic
Saw blade cleaning electrically driven chip brush
Length 2,250 mm
Width 4,400 mm
Height 2,760 mm
Weight 6,500 kg
Material support height 800 mm
