Horizontal bandsaw HBE261A Dynamic

The automatic bandsaw offers powerful, accurate cuts with low costs per cut

The automatic band saw HBE261A Dynamic from BEHRINGER is designed for economical use in industry and the steel trade. It offers high-performance saw cuts with simultaneously low cutting deviations in easy to difficult-to-machine metals and plastics. In doing so, the band saw covers a wide range of materials from profiles and tubes to solid material. Thanks to its wide-opening full enclosure, the automatic band saw HBE261A Dynamic offers uncompromising work protection combined with good accessibility. Its low energy consumption contributes to resource-saving production.

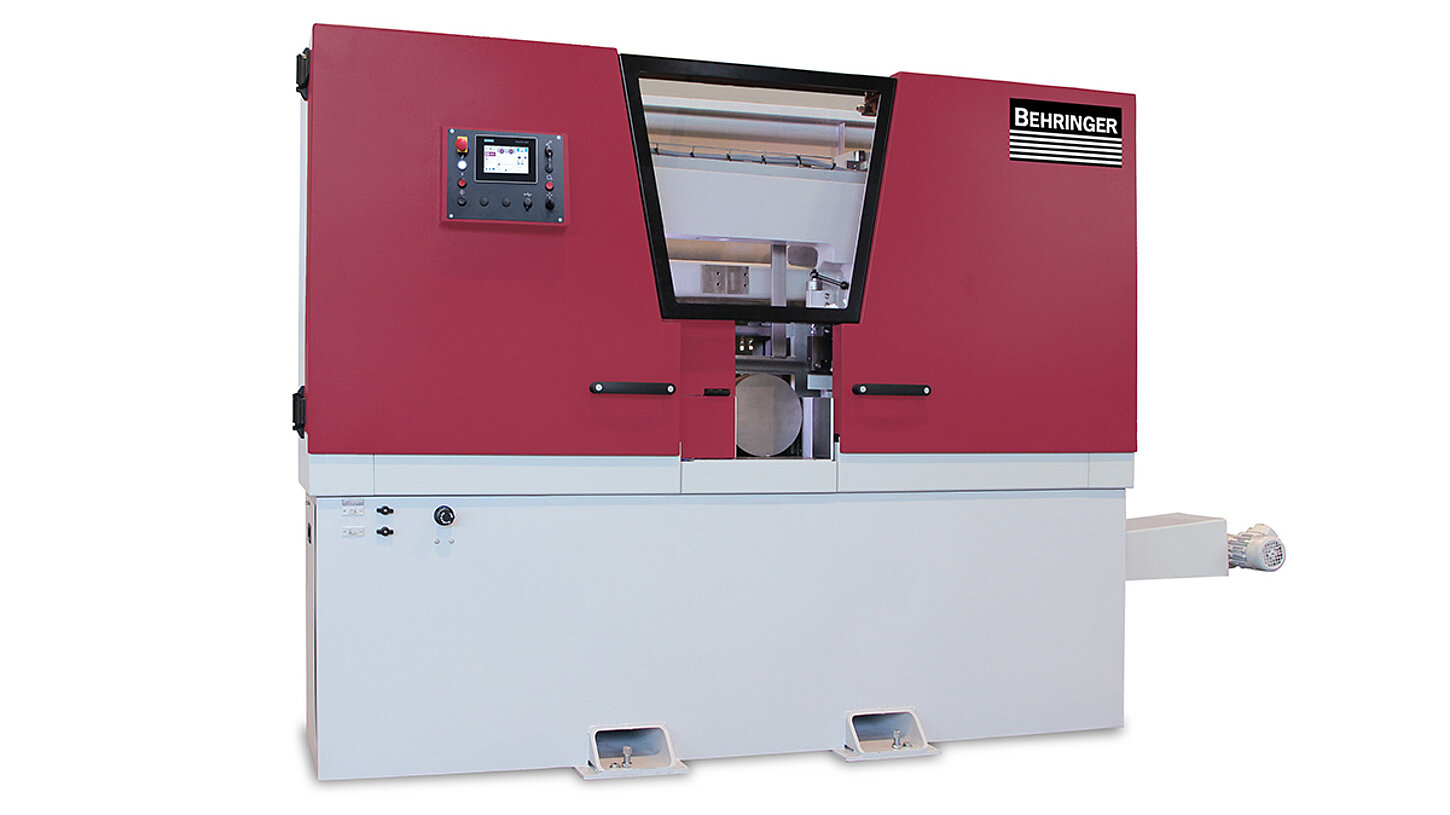

Horizontal bandsaw HBE261A Dynamic
Intuitive BehrCtrl10 touch control
Cast iron band guiding parts
Product video automatic bandsaw HBE261A Dynamic
Electrically driven chip brush

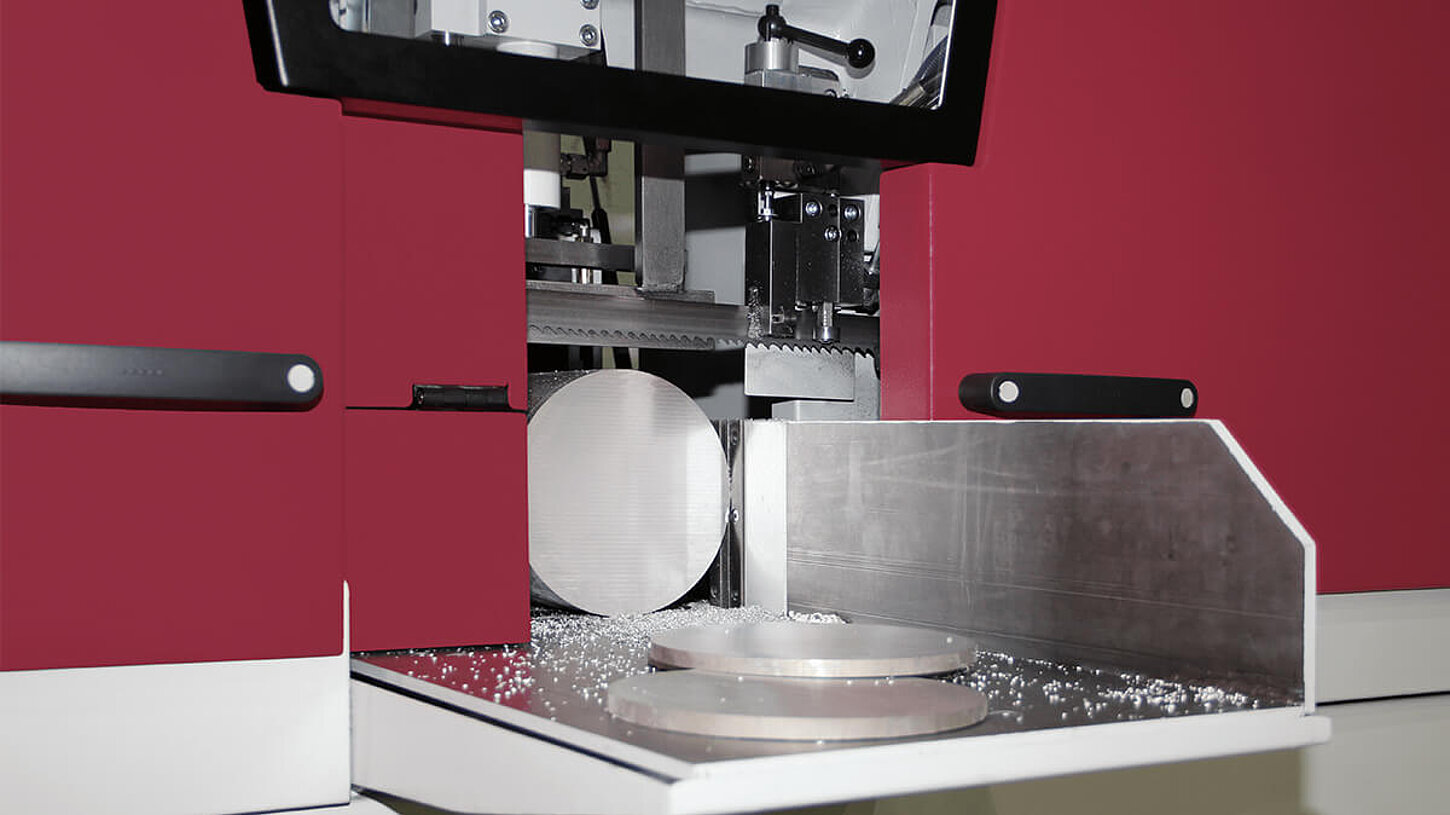

Extended material table (option)
Bundle clamping device (option)

Features of the horizontal bandsaw HBE261A Dynamic

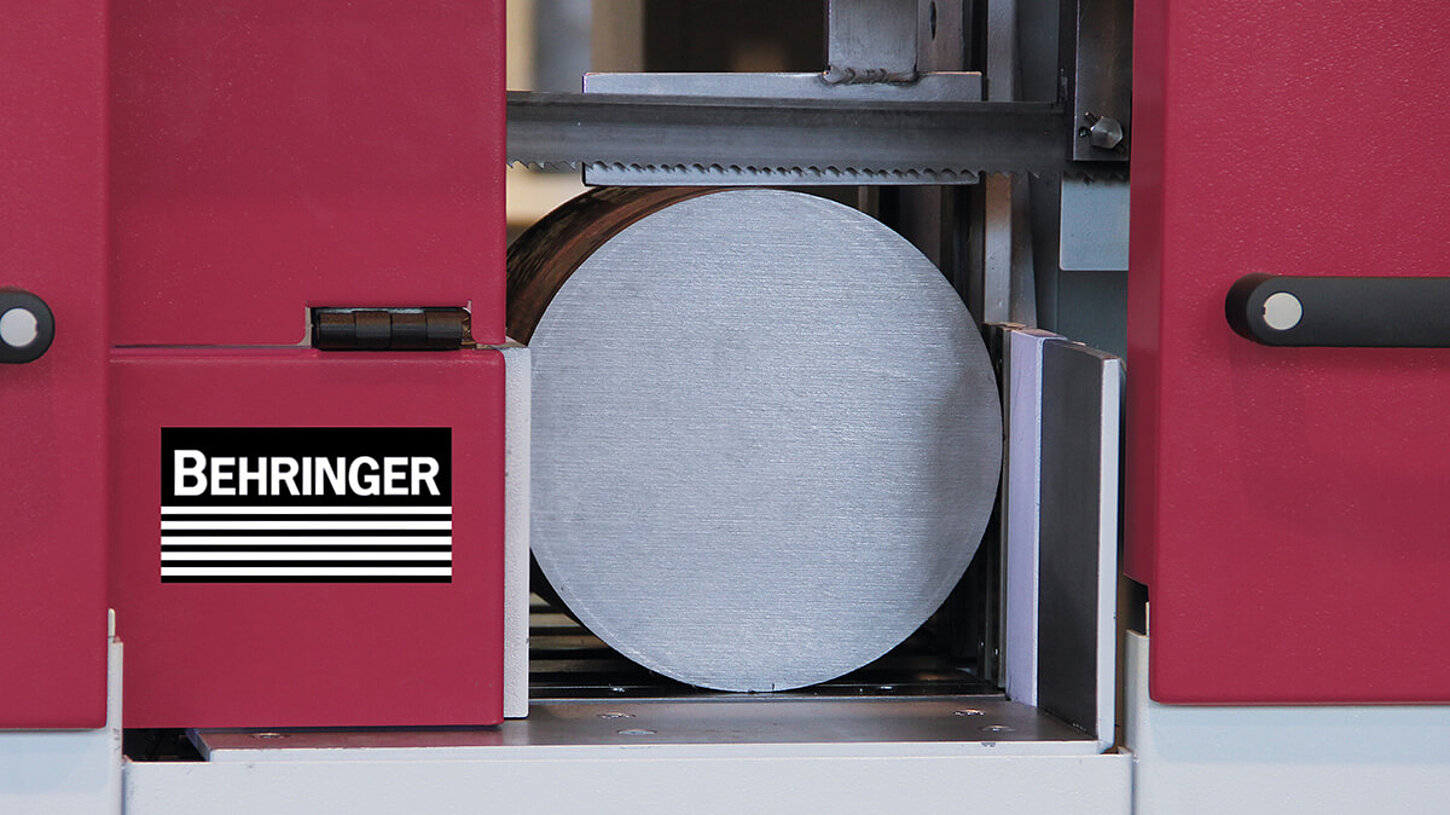

Cast iron band guiding parts
are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

Precision portal-design guide system
The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

Electrically driven chip brush
with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

Easy to use
Quick and easy operation of all functions of the automatic band saw via touch control.

Sensitive Behringer cutting pressure control
increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

Automatic guide arm
Optimum sawing result without any adjustments - even with frequently changing material sizes.

Energy efficient
The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.

Individual Configuration

The horizontal bandsaw HBE261A Dynamic can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data horizontal bandsaw HBE261A Dynamic

Cutting range 90° round	260 mm
Cutting range 90° flat	300 x 260 mm
Smallest dimension to be sawn round	10 mm
Smallest dimension to be sawn flat	10 x 8 mm

Feeding length single stroke	650 mm
Drive power	2.6 kW
Blade speed	15 - 110 m/min
Saw blade dimensions	4,440 x 34 x 1.1 mm
Rest piece length in automatic operation	70 mm
Total power	3.7 kW
Saw feed	hydraulic
Material feed	ball screw
Material clamping	hydraulic
Saw blade cleaning	electrically driven chip brush

Length	1,850 mm
Width	2,300 mm
Height	1,820 mm
Weight	1,850 kg
Material support height	800 mm
