VPX256S - Versatile and ultra-productive angle line

Choose reliability and increase your productivity

The Vernet Behringer angle line VPX256S covers numerous machining operations: marking, punching and shearing. This highly productive machine combines high work rates and great ease of use. The VPX256S is ideally suited for manufacturers of lattice towers and structural steel builders seeking maximum productivity for angles up to 250 x 25 mm.

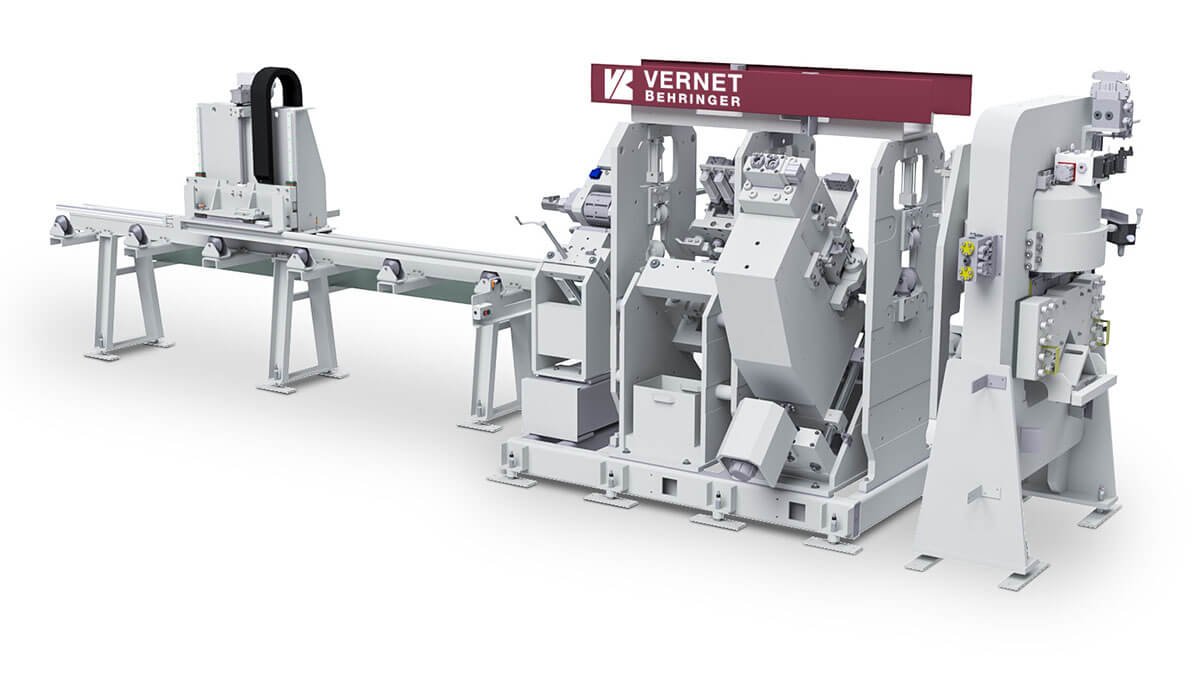

  • Angle line VPX256S

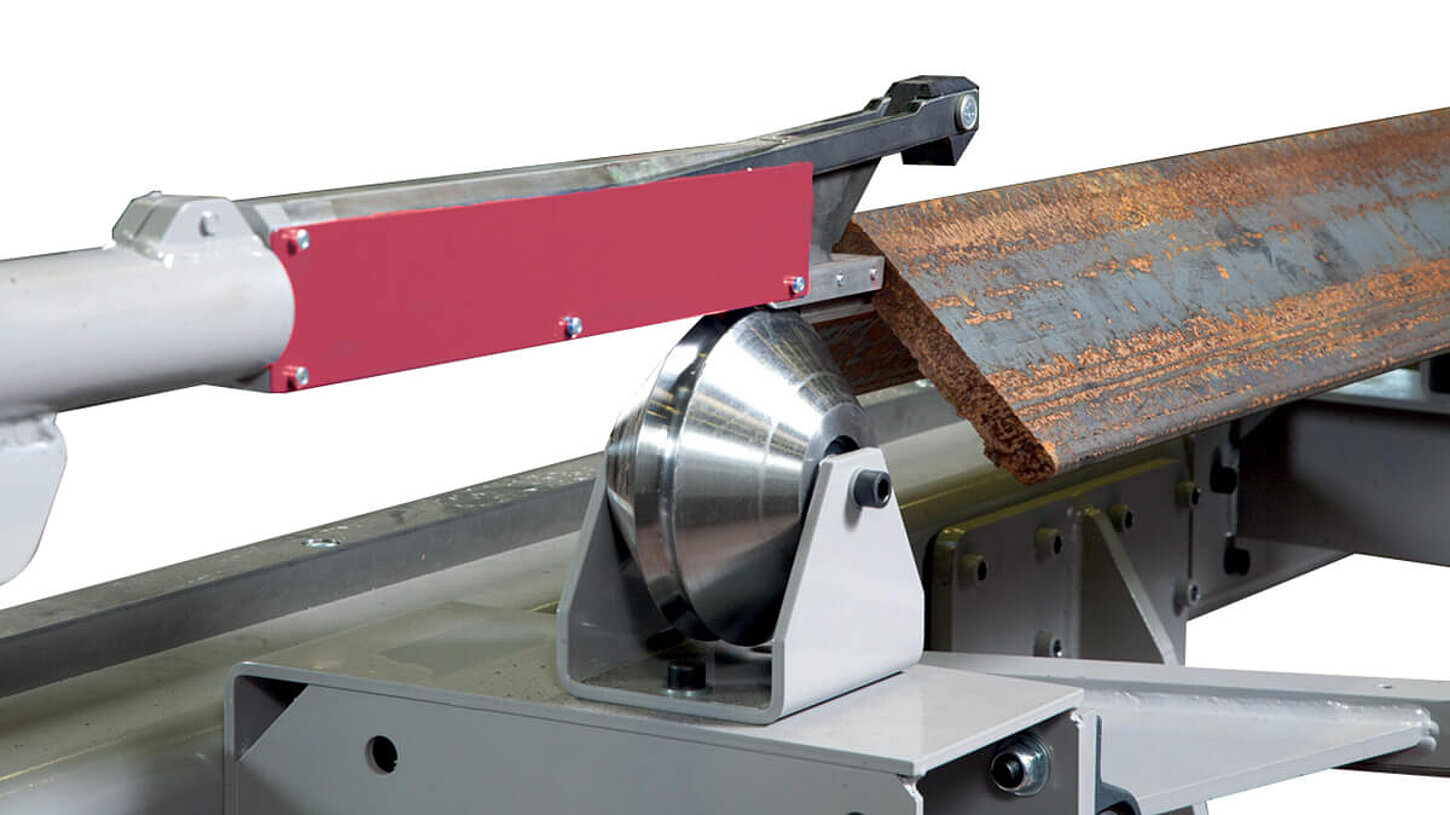

  • CNC carriage and gripper

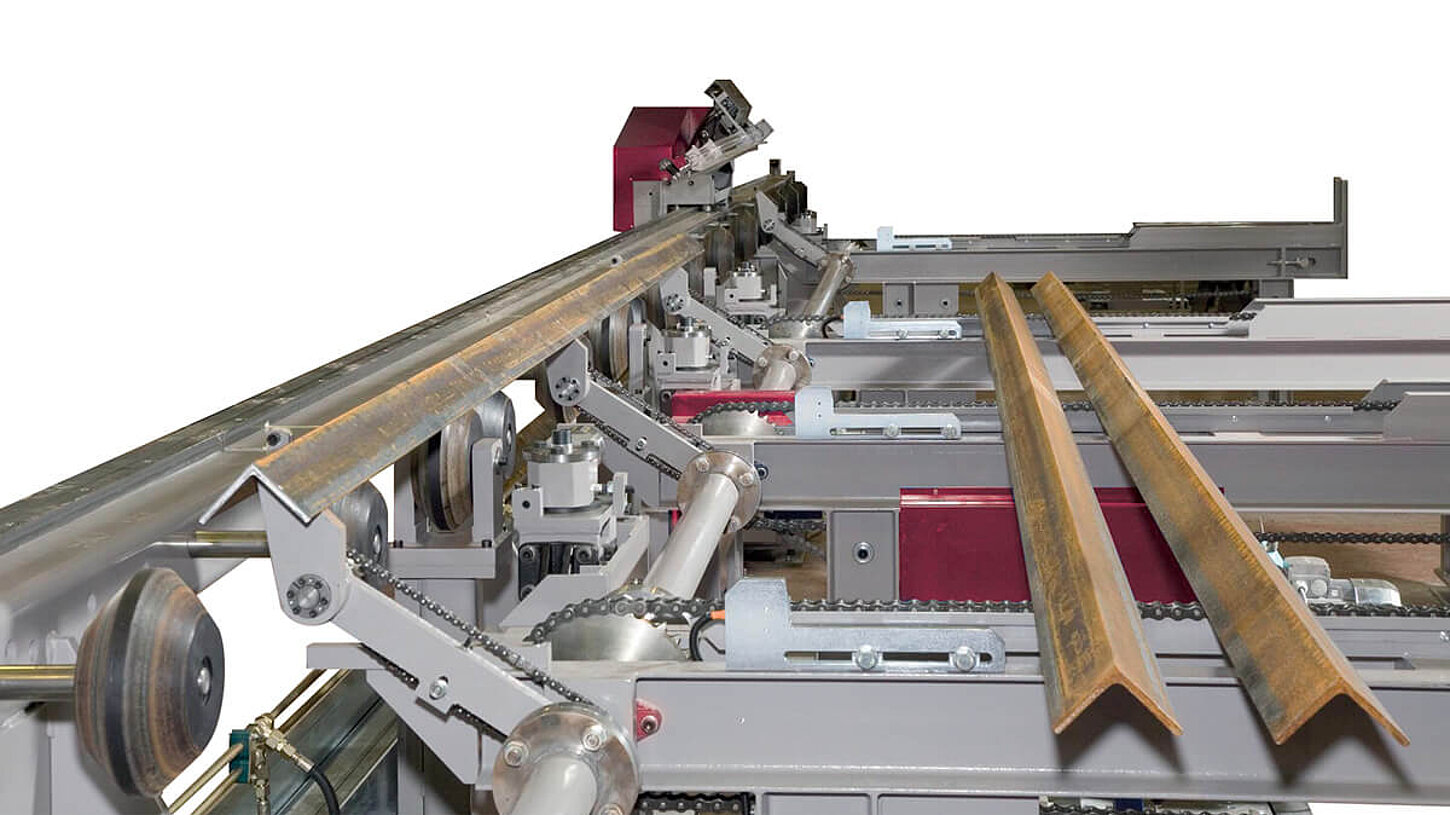

  • Loading chains with rotating arms

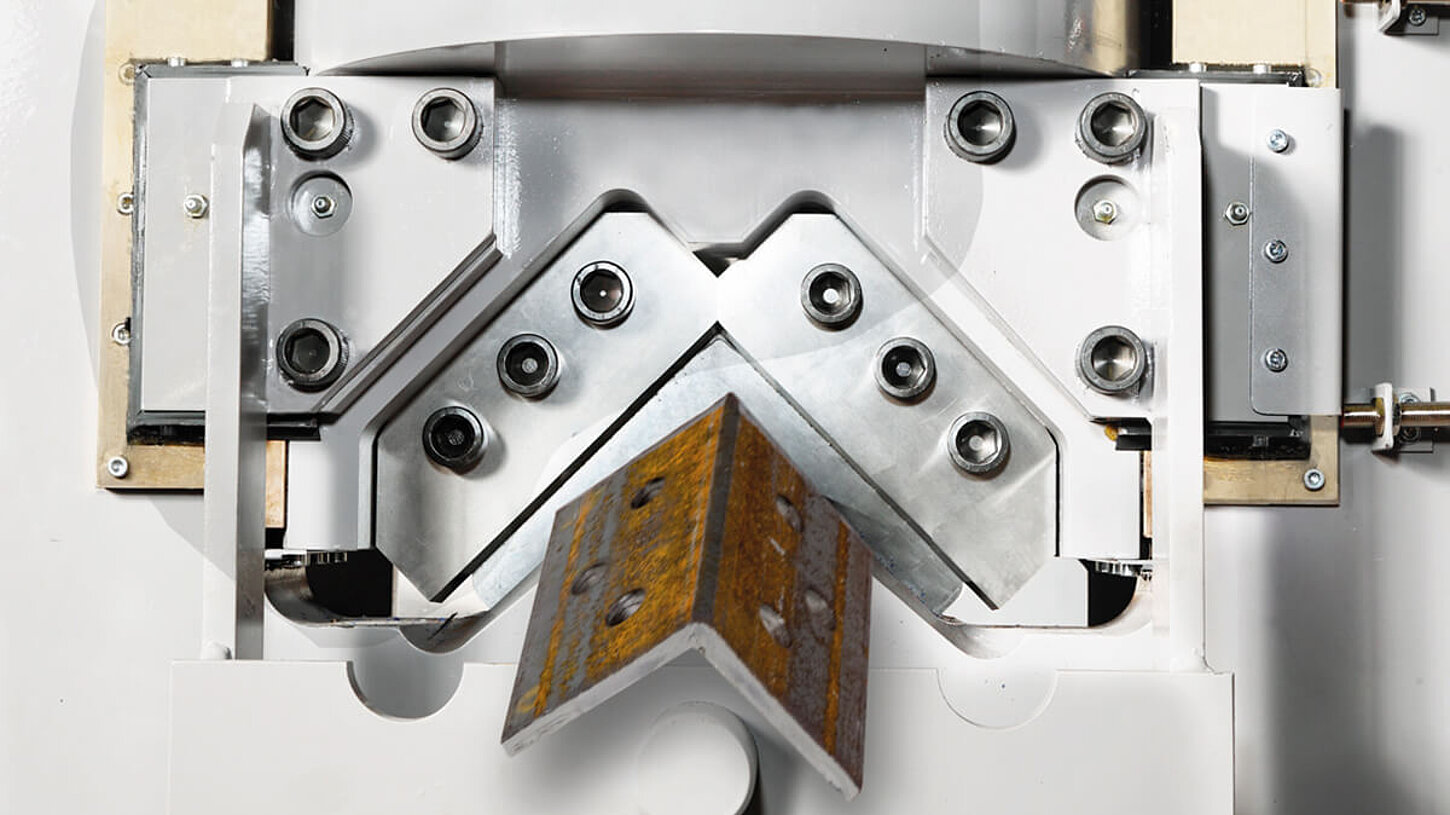

  • High speed single cut shearing unit

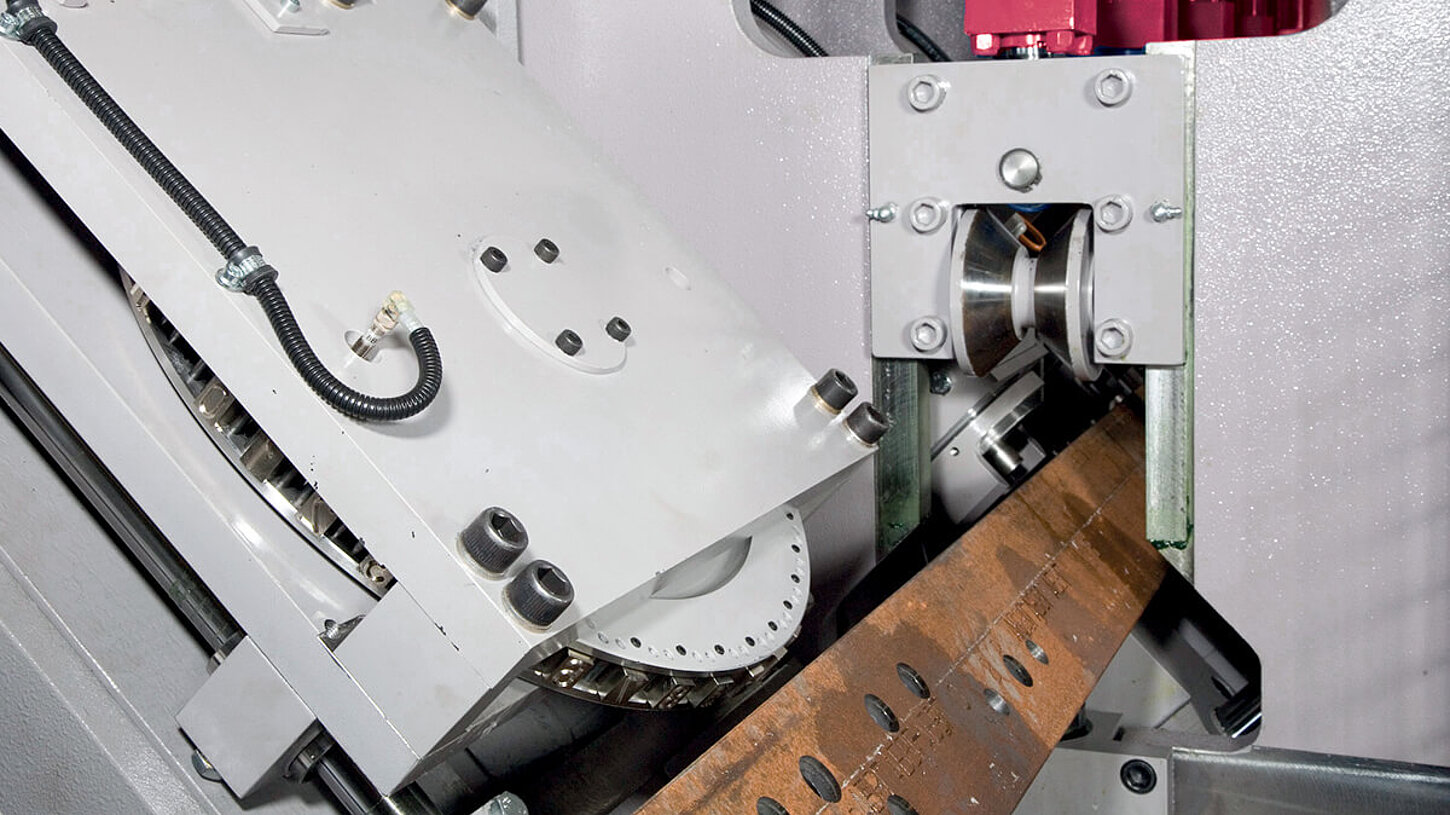

  • Highly versatile disc marking unit

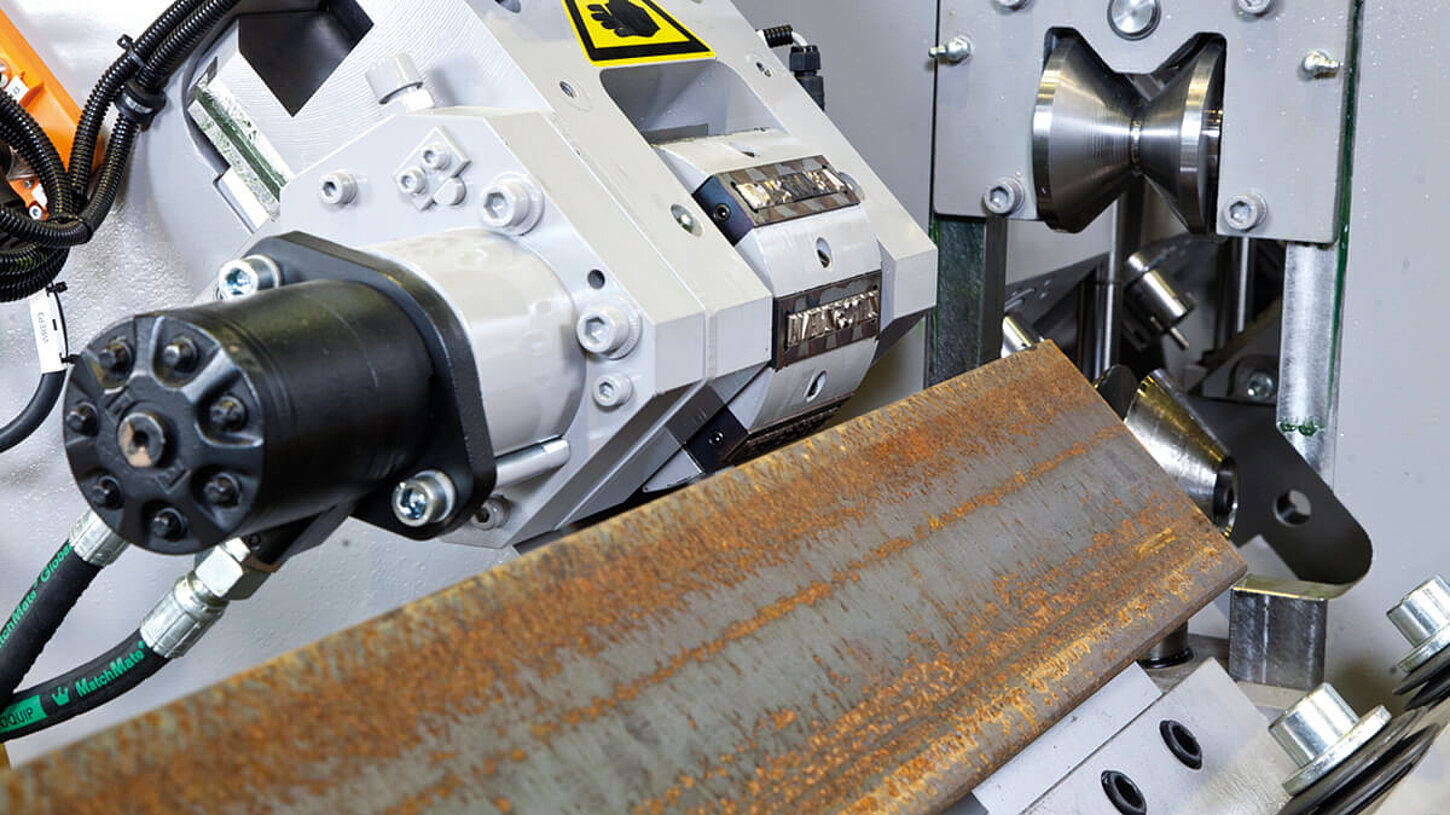

  • High speed marking barrel marking unit

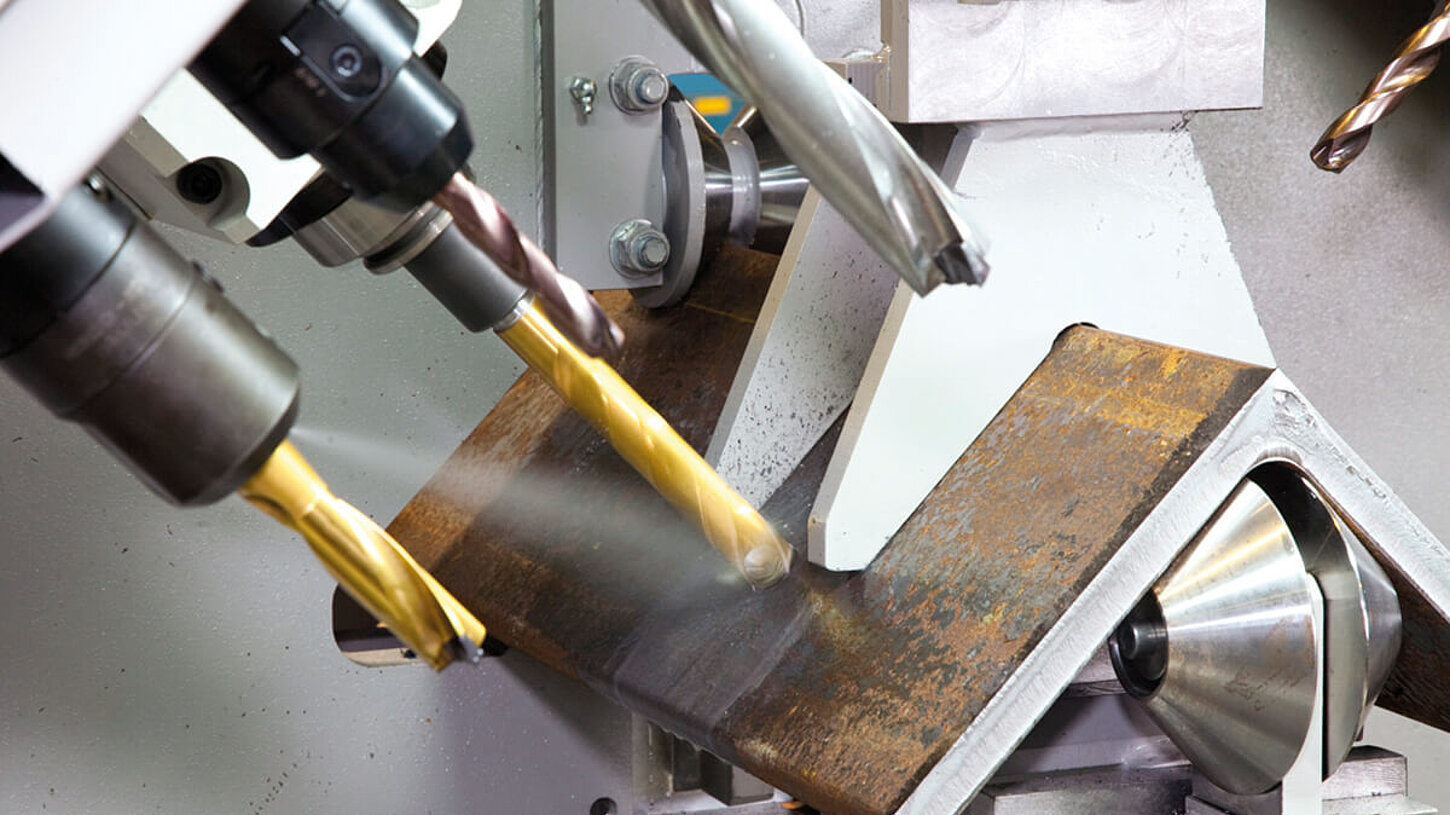

  • Drill units above the angle: easy collection of chips and coolant

Features of the angle line VPX256S

Punching

Drilling

Marking

Shearing

  • Conception unique sur le marché
    avec passage de la cornière en position ^ offrant le meilleur rapport productivité / coût d’utilisation.

  • Faibles coûts d'exploitation
    L'utilisation de poinçons courts est rigide et efficace en termes de prix.

  • Conception ultra-robuste
    Conçue et fabriquée pour travailler dans des conditions d’utilisation exigeantes.

  • Highest Productivity
    Heavy duty hydraulics and mechanical design suitable for continuous work af full load.

  • Optional drilling unit
    for maximum flexibility whatever the technical and normative constraints are.

  • Very compact machine
    with 6 punching units (3 per flange) facing each other in order to minimize the transfer time through the block.

  • Reworked hydraulic architecture
    reducing punching and shearing times up to 40%.

  • Quick tool changing
    thanks to excellent accessibility and ergonomics.

  • User-friendly software suite
    PRONC23D programming software for easy part import and programming with 3D display.

  • Operational everywhere
    The VPX256S can be specially adapted for use in particularly high or low temperatures.

  • Accessibilité optimale
    Vernet Behringer attache une grande importance à la maintenance et à l'entretien: toutes les pièces et composants importants sont aisément accessibles. La conception de la machine offre un accès direct à toutes les pièces d'usure, ce qui permet de faciliter l'entretien et les réparations.

Individual Configuration

The VPX256S anlgle line can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data angle line VPX256S

Capacity min 50 x 5 mm
Capacity max 250 x 25 mm
Punching Ø 6
Punching power 105 T
Shearing power 600  T
Drilling unit option
Disc marking unit option, 40 positions
Barrel marking unit option, 80 T, 8 positions, up to 15 characters/position
Feeding system CNC high speed carriage with hydraulic gripper
Storage chains and rotating arms option
Outfeed conveyor with tilting unloading arms standard
Removable element for unloading short parts option
Fully-automatic loading, gripping and unloading operations option
Multi-zone automatic part sorting option
Machine control PRONC23D programming software with 3D part display
